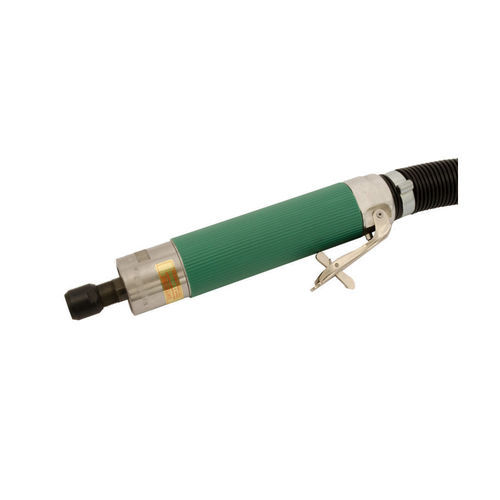

Pneumatic portable grinder 1 5077 0020

precisionsubmersibleindustrial

Short description
This pneumatic die grinder is designed for industrial metalworking and enables precise grinding and finishing operations, including use in submerged or underwater conditions.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Actuation: Lever valve
• Tool holder: Collet dia. 1/4"
• Exhaust: Rear
• Underwater operation

Technical Data

• ORDER NO.: 1 5077 0020
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Valve type: Lever valve
• Tool holder: Collet dia. 1/4"
• Air consumption: 0.85 m³/min
• Power: 0.70 kW
• Speed (free): 20,000 rpm
• Exhaust connection: rear
• Length: 246.00 mm
• Connection: R1/4" female
• Noise level LpA: 85.9 dB(A)
• Noise level LWA: 96.6 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 1.4 kg
• Fields of application / branch: Metal industry and steel construction; Plant and mechanical construction; Underwater Work

Accessories

• Grinding pins, truncated cones, end mills and other tools are available on request
• 9 3610 0180 — Hose 2.5 m with lubricator — R 1/4" male
• 9 3610 0200 — Hose 2.5 m without lubricator — R 1/4" male
• 9 2113 0260 — Plug connection — R 1/4" male
• 9 2115 0090 — Plug nipple — R 1/4" male
• 9 2406 0020 — Service unit with filter and lubricator — R 1/4" male
• 9 2406 0110 — Service unit with filter, lubricator and pressure regulator — R 1/4" male
• 9 2406 0630 — Service unit with protection housing 1/2" — R 1/4" male
• 9 1301 0050 — Open-ended spanner SW14 DIN 894 (for changing tools)

Note
Grinding pins, truncated cones, end mills and other tools are available on request.
