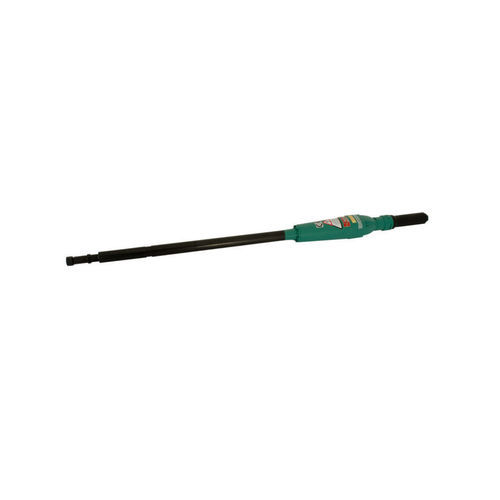

Pneumatic portable grinder 1 1461 0010

straight

Product description
The pneumatic axial grinder delivers high material removal rates at free speeds up to 10,000 rpm. The tool can be extended using optional extensions. The tool holder accepts a collet with a 6 mm diameter.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Actuation: Twist throttle
• Speed (free): 10,000 rpm
• Tool holder: collet dia. 6 mm

Technical Data
ORDER NO.: 1 1461 0010
Energy source: Pneumatic
Operating pressure: 6 bar
Valve type: Twist throttle
Tool holder for: collet dia. 6 mm
Neck dia.: 30.00 mm
Air consumption: 1.50 m³/min
Power: 1.25 kW
Speed (free): 10,000 rpm
Length: 1,010.00 mm
Connection: R1/2" female
Noise level LpA: 88.5 dB(A)
Vibration level: <2.5 m/s²
Weight: 5.0 kg
Fields of application / branch: Metal industry and steel construction; Plant and mechanical construction

Accessories - Extensions
ORDER NO. | Neck dia. [mm] | Length [mm]
1 1450 7930 | 30.00 | 250.00
1 1450 7940 | 30.00 | 500.00

Accessories - Miscellaneous
ORDER NO. | Description
9 2406 0260 | Service unit (hand-held) with pressure regulator R 3/4" and claw coupling
9 2406 0630 | Service unit with protection housing R 1/2" male
9 3610 0410 | Service unit with protection housing R 1/2" male
9 3610 0420 | Pneumatic hose ID 15 mm, 2.5 m length, compl. with claw coupling screwable
9 2101 0010 | Claw coupling, metal sealing, R 1/2" male
9 2102 0020 | Claw coupling, metal sealing, R 1/2" male

Characteristics / technical specifications

• Order number: 1 1461 0010
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Valve type / Actuation: Twist throttle
• Tool holder: collet dia. 6 mm
• Neck diameter: 30.00 mm
• Air consumption: 1.50 m³/min
• Power: 1.25 kW
• Free speed: 10,000 rpm
• Length: 1,010.00 mm
• Connection: R1/2" female
• Noise level LpA: 88.5 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 5.0 kg
• Fields of application: Metal industry and steel construction; Plant and mechanical construction
