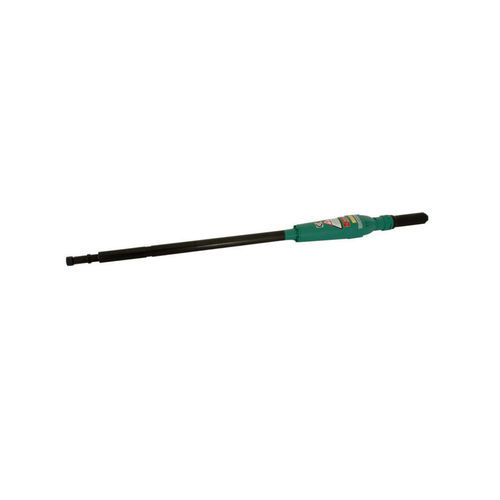

Pneumatic portable grinder 1 1461 0050

straight

Product description
The pneumatic axial grinder designed for machining at free speeds up to 10,000 rpm, offering high material removal performance. The machine can be fitted with optional extensions. It is equipped with a tool holder for form grinding bodies, dia. max. 50 mm, M12.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Actuation: Twist throttle
• Speed (free): 10,000 rpm
• Tool holder: for form grinding bodies, dia. max. 50 mm, M12

Technical Data
ORDER NO.: 1 1461 0040
Energy source: Pneumatic
Operating pressure: 6 bar
Valve type: Twist throttle
Tool holder for: form grinding bodies, dia. max. 50 mm, M12
Neck dia.: 30.00 mm
Air consumption: 1.50 m³/min
Power: 1.25 kW
Speed (free): 10,000 rpm
Length: 1,010.00 mm
Connection: R1/2" female
Noise level LpA: 88.5 dB(A)
Vibration level: <2.5 m/s²
Weight: 5.0 kg
Fields of application / branch: Metal industry and steel construction; Plant and mechanical construction

Accessories - Extensions
ORDER NO. | Neck dia. [mm] | Length [mm]
1 1450 7930 | 30.00 | 250.00
1 1450 7940 | 30.00 | 500.00

Accessories - Miscellaneous Accessories
ORDER NO. | Description
9 2406 0260 | Service unit (hand-held) with pressure regulator R 3/4" and claw coupling
9 2406 0630 | Service unit with protection housing R 1/2" male
9 3610 0410 | Service unit with protection housing R 1/2" male
9 3610 0420 | Pneumatic hose ID 15 mm, 2.5 m length, compl. with claw coupling screwable
9 2101 0010 | Claw coupling, metal sealing, R 1/2" male
9 2102 0020 | Claw coupling, metal sealing, R 1/2" male

Technical specifications

• Order number: 1 1461 0040
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Valve type: Twist throttle
• Tool holder for: form grinding bodies, dia. max. 50 mm, M12
• Neck diameter: 30.00 mm
• Air consumption: 1.50 m³/min
• Power: 1.25 kW
• Speed (free): 10,000 rpm
• Length: 1,010.00 mm
• Connection: R1/2" female
• Noise level LpA: 88.5 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 5.0 kg
• Fields of application: Metal industry and steel construction; Plant and mechanical construction
