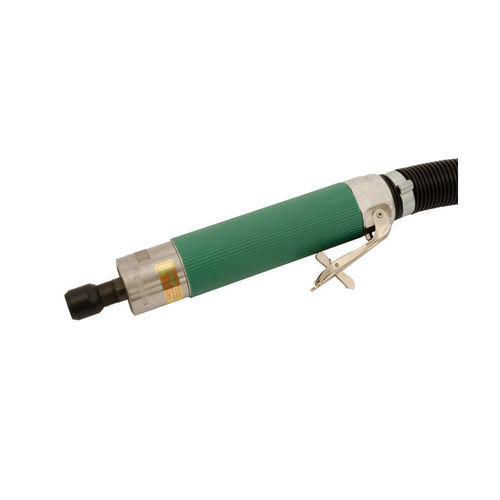

Pneumatic portable grinder 1 5077 0050

submersibleindustrialdie

Product description
This pneumatic die grinder (order no. 1 5077 0050) is designed for metalworking and underwater tasks. Compact and lightweight, it features a lever valve, rear exhaust and an 8 mm collet compatible with common grinding tools. The tool delivers up to 20,000 rpm at 0.70 kW and is suited for plant construction, steel construction and underwater maintenance.

Main attributes

• Energy source: Pneumatic
• Operating pressure: 6 bar
• Actuation: Lever valve
• Tool holder: Collet dia. 8 mm
• Exhaust: Rear
• Underwater operation

Technical Data
ORDER NO.: 1 5077 0050
Energy source: Pneumatic
Operating pressure: 6 bar
Valve type: Lever valve
Tool holder: Collet dia. 8 mm
Air consumption: 0.85 m³/min
Power: 0.70 kW
Speed (free): 20,000 rpm
Exhaust connection: rear
Length: 246.00 mm
Connection: R 1/4 female
Noise level LpA: 85.9 dB(A)
Noise level LWA: 96.6 dB(A)
Vibration level: <2.5 m/s²
Weight: 1.4 kg
Fields of application / branch: Metal industry and steel construction; Plant and mechanical construction; Underwater Work

Accessories

• Tools: Grinding pins, truncated cones, end mills and other tools are available on request.
• Miscellaneous Accessories:

• 9 3610 0180 — Hose 2.5 m with lubricator — Connection: R 1/4 male
• 9 3610 0200 — Hose 2.5 m without lubricator — Connection: R 1/4 male
• 9 2113 0260 — Plug connection — Connection: R 1/4 male
• 9 2115 0090 — Plug nipple — Connection: R 1/4 male
• 9 2406 0020 — Service unit with filter and lubricator — Connection: R 1/4 male
• 9 2406 0110 — Service unit with filter, lubricator and pressure regulator — Connection: R 1/4 male
• 9 2406 0630 — Service unit with protection housing 1/2 in. — Connection: R 1/4 male
• 9 1301 0050 — Open-ended spanner SW14 DIN 894 (for changing tools)
• More accessories on request.

Technical specifications

• Order number: 1 5077 0050
• Energy source: Pneumatic
• Operating pressure: 6 bar
• Valve type: Lever valve
• Tool holder: Collet dia. 8 mm
• Air consumption: 0.85 m³/min
• Power: 0.70 kW
• Free speed: 20,000 rpm
• Exhaust: rear
• Length: 246.00 mm
• Connection: R 1/4 female
• Noise level LpA: 85.9 dB(A)
• Noise level LWA: 96.6 dB(A)
• Vibration level: <2.5 m/s²
• Weight: 1.4 kg
• Fields of application: Metal industry and steel construction; Plant and mechanical construction; Underwater Work
