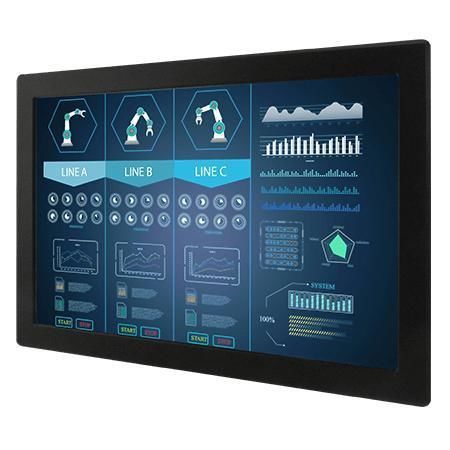

21.5" display W22L100-PMA3HB

TFT LCDresistive touch screencolor

Overview
This 21.5-inch panel-mount high-brightness display W22L100-PMA3HB by Winmate is designed for embedded, commercial and industrial applications. It features optical bonding with anti-reflective protection glass, a metal housing with aluminum bezel and a fanless design for continuous 24/7 operation. Multiple video inputs and mounting options simplify integration into embedded systems and industrial installations.

Key Features

• 21.5-inch, 1920 x 1080 resolution
• VGA and HDMI inputs (DVI optional)
• Panel-mount (optional) and VESA mount
• High brightness (up to 1000 nits)
• Metal enclosure with aluminum bezel; fanless design

Certifications

• CE
• FCC

Product Highlights
Low power consumption and effective heat dissipation suitable for continuous operation in production environments.
Optical bonding and anti-reflective cover glass improve readability under direct sunlight and in high-humidity conditions by reducing reflections and eliminating the air gap.
Multiple signal interfaces (VGA, HDMI, optional DVI) and USB touch support for straightforward integration with embedded boards and systems.
Flexible mounting: supports panel-mount installation and VESA mounting for diverse industrial setups.
Customizable options available for panel brightness, cover glass treatment, display ports and power input to meet market-specific requirements.

Technical specifications

• Model: W22L100-PMA3HB
• Brand: Winmate
• Display size: 21.5 inches
• Resolution: 1920 x 1080
• Panel brightness: 1000 nits
• Contrast ratio: 5000:1
• Viewing angles: 89 / 89 / 89 / 89
• Colors: 16.7M
• Active area: 476.64 x 268.11 mm
• Touch / Glass: Resistive touch (standard); protection glass w/o touch (optional); SAW touch (optional)
• USB: 1 x USB for touch
• Video inputs: 1 x VGA; 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 x speaker (optional)
• Dimensions (W x H x D): 534 x 349 x 62 mm
• Cut-out dimensions: 510 x 322 mm
• Weight: 6.3 kg
• Mounting: VESA mount; Panel mount (optional)
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing
• Power rating: 12V DC input; 24V DC input (optional)
• Buttons / Controls: 5 keys: -, +, Power, Esc, Enter
• Accessories included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
• Optional accessories: Remote controller (optional)
• Certifications: CE, FCC
