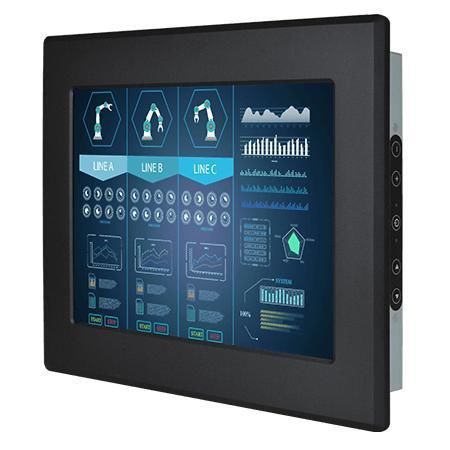

10.4" display R10L600-PMP1HB

LCDresistive touch screencolor

Overview
This 10.4" panel-mount high-brightness display is designed for embedded, commercial and industrial applications requiring continuous operation and high daytime readability. The unit combines low power consumption, fanless cooling and a rugged metal enclosure for reliable long-term use in production and field environments.

Key Features

• 10.4", 800 × 600 (SVGA) resolution
• High brightness: 1000 nits
• Panel mount with optional VESA mounting
• VGA standard; HDMI and DVI optional
• Touch options: resistive (standard), protection glass only or SAW (optional)

Certifications

• CE
• FCC

Product Highlights

• Low power consumption: optimized LED backlight and thermal design for continuous industrial operation.
• Flexible mounting: panel cut-out and VESA support for control panels, machines and HMI enclosures.
• High daytime readability: optical bonding and anti-reflective protection glass reduce reflections and improve contrast in bright environments.
• Diversified signal interfaces: VGA standard with optional HDMI/DVI for broad embedded-system compatibility.
• Industrial reliability: fanless design and metal housing for dust resistance and stable performance.
• Image quality: industrial-grade module assembly for consistent color and contrast.
• Customization: configurable brightness, glass treatment, I/O ports and enclosure options.

Product Details

• Display size: 10.4 inches
• Native resolution: 800 × 600
• Touch / Glass: Resistive touch (standard); Protection glass w/o touch (optional); SAW touch (optional)
• Panel brightness: 1000 nits
• Contrast ratio: 400:1
• Viewing angles (L/R/T/B): 70 / 70 / 70 / 60
• Display colors: 262K
• Active area: 211.2 × 158.4 mm
• USB: 1 × USB for touch
• Video: 1 × VGA; 1 × HDMI (optional); 1 × DVI (optional)
• Audio: line-in (3.5 mm) optional; 2 × speaker optional
• Mechanical dimension: 284 × 234 × 43 mm
• Cut out: 264 × 216 mm
• Weight: 1.8 kg
• Mounting: panel mount; VESA mount (optional)
• Enclosure: metal housing with aluminum bezel
• Cooling: fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Power rating: 12V DC in (standard); 24V DC in (optional)
• Control keys: 5 keys ( -, +, Power, Esc, Enter )

Technical Specifications

• Model: R10L600-PMP1HB
• Brand: Winmate
• Certifications: CE, FCC
• Included accessories: VGA cable, HDMI cable, 100~240V AC-DC adapter, power cord, manual, VESA screws (varies by configuration)
