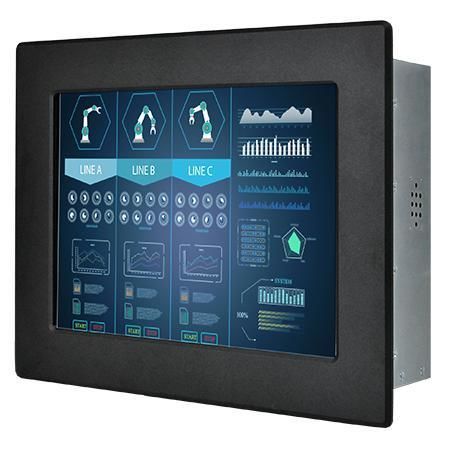

10.4" display R10L100-PMT2

touch screenresistive touch screencolor

Overview
Winmate R10L100-PMT2 is a 10.4-inch panel mount display designed for embedded, commercial and industrial applications. It delivers 1024 x 768 resolution, multiple video inputs and flexible mounting options for integration into control panels, cabinets and machinery.

Key features

• 10.4-inch, 1024 x 768
• VGA and HDMI input (HDMI optional)
• Panel mount and VESA mount options
• 350 nits brightness, 1000:1 contrast ratio

Certifications

• CE
• FCC

Product details

• Low power consumption: Engineered for low power operation and effective heat dissipation to support continuous use in production environments.
• Easy mounting: Universal panel and VESA mounting enable straightforward integration into wall, desk, cabinet or console installations.
• Signal interfaces: Standard VGA with optional HDMI and DVI ports for integration with embedded boards and industrial systems.
• High reliability: Metal housing with aluminum bezel and fanless design for durable, maintenance‑friendly operation in factory settings.
• Image quality: Industrial-grade panel and assembly ensure consistent color and image performance.
• Customization: Options for touch type, protective glass, panel brightness, display ports, power input and enclosure materials depending on configuration.

Specifications

• Size: 10.4 inches
• Touch / Glass: Resistive Touch Screen; Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Resolution: 1024 x 768
• Panel Brightness: 350.0 nits
• Contrast Ratio: 1000:1
• View Angles: 88, 88, 88, 88
• Display Color: 16.2M Colors
• Active Area: 210.4 x 157.8 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA; 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 284 x 234 x 43 mm
• Cut out: 264 x 216 mm
• Weight: 1.5 kg
• Mounting: VESA mount; Panel mount (Optional)
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product)
• Optional Accessory: Remote Controller (Optional, Varies by product)
• Power Rating: 12V DC in; 24V DC in (optional)
• Button: 5 Keys: -, +, Power, Esc, Enter
