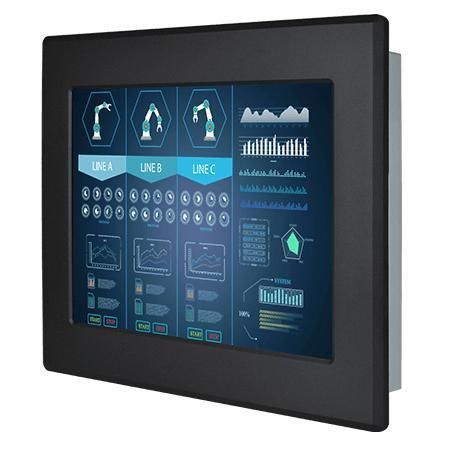

10.4" display R10L100-PMT2HB

TFT LCDcolor1024 x 768

Product overview
Winmate R10L100-PMT2HB is a 10.4-inch panel-mount high-brightness display designed for embedded and industrial applications. Low power consumption, fanless design and a rugged metal housing support continuous 24/7 operation and reliable performance in production environments.

Key features

• 10.4 inches, 1024 x 768 resolution
• Panel brightness: 1000 nits
• VGA and HDMI inputs (HDMI/DVI optional)
• Panel-mount and VESA-mount support
• Optional touch and protective glass: resistive touch, SAW, or protection glass without touch

Benefits

• Low power consumption and effective heat dissipation for long-term industrial use
• High readability in bright or humid environments due to anti-reflective optical bonding
• Universal mounting options simplify installation in control panels, kiosks and machines
• Modular signal interfaces facilitate integration with embedded boards and commercial systems

Customization and accessories

• Custom options: panel size, LCD brightness, glass surface treatment, display ports and power input variants
• Included accessories: VGA cable, HDMI cable, 100–240V AC-DC adapter, power cord, manual, VESA screws (varies)
• Optional accessories: remote controller, speakers, audio input, 24V DC input

Certifications

• CE
• FCC

Technical specifications

• Model: R10L100-PMT2HB
• Display size: 10.4 inches
• Resolution: 1024 x 768
• Panel brightness: 1000 nits
• Contrast ratio: 1000:1
• Viewing angles: 88/88/88/88
• Display colors: 16.2M
• Active area: 210.4 x 157.8 mm
• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• USB: 1 x USB for touch
• Video: 1 x VGA; 1 x HDMI (optional); 1 x DVI (optional)
• Audio: audio line in 3.5mm (optional); 2 x speakers (optional)
• Dimensions: 284 x 234 x 42 mm
• Cut out: 263 x 207 mm
• Weight: 1.5 kg
• Mounting: VESA mount; panel mount (optional)
• Enclosure: metal housing with aluminum bezel
• Cooling: fanless design
• Power: 12V DC input (24V optional)
• Control buttons: 5 keys (-, +, Power, Esc, Enter)
