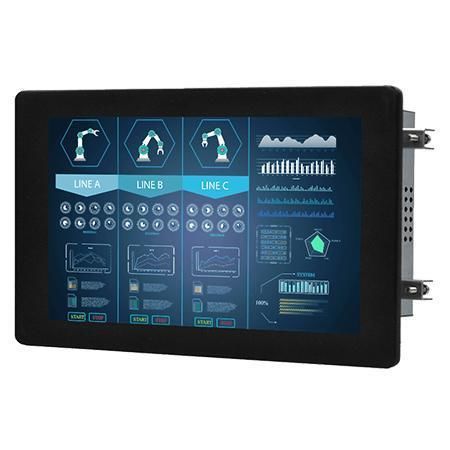

10.1" display W10L100-PMH2

TFT LCDresistive touch screencolor

Key Features

• 10.1 inches 1280 x 800 panel-mount display
• VGA and HDMI input (DVI optional)
• Panel mount and VESA mount options
• Resistive touch or protection glass (optional)

Certifications

• CE
• FCC

Overview
Low Power Consumption
This display is designed for low power consumption and effective heat dissipation, enabling durable operation for extended use in production and industrial environments.

Easy Mounting
Universal mounting options support panel mounting and VESA mounting for wall or desk installation, simplifying integration into control panels and equipment racks.

HDMI, VGA Signal Interfaces
Supports VGA and HDMI inputs for straightforward connection to embedded boards and industrial systems; DVI is available as an option for specific variants.

High Reliability for Various Industrial Applications
Built in a rugged metal enclosure with aluminum bezel and fanless design, the display is suitable for factory automation, HMI, embedded systems and other industrial uses where long-term reliability is required.

Outstanding Image Quality
Industrial-grade display assembly and controlled manufacturing ensure consistent color reproduction and image stability for machine interfaces and commercial displays.

Display Ports and Customization
Customization options include panel size, bezel/logo, LCD brightness, glass surface treatment, display ports and power plug selection to meet regional and application requirements.

Technical specifications

• Size: 10.1 inches
• Touch / Glass: Resistive touch screen (optional); protection glass without touch (optional)
• Resolution: 1280 x 800
• Panel brightness: 350 nits
• Contrast ratio: 800:1
• View angles: 85 / 85 / 85 / 85 (L/R/U/D)
• Display color: 16.7M colors
• Active area: 216.96 x 135.6 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certification: CE, FCC
• USB port: 1 x USB for touch screen
• Video: 1 x VGA; 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 x speaker (optional)
• Dimension (W×H×D): 286 x 182 x 38 mm
• Cut out: 239 x 170 mm
• Weight: 1.25 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling system: Fanless design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: Remote controller (optional, varies by product)
• Power rating: 12V DC in; 24V DC in (optional)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
