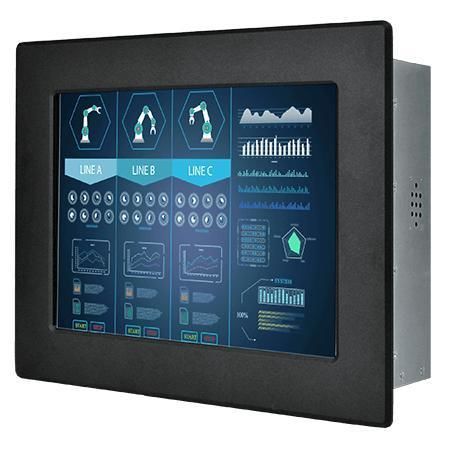

10.4" display R10L600-PMP1

LCDresistive touch screencolor

Key Features

• 10.4-inch TFT display, 800 × 600 resolution
• VGA and HDMI inputs (DVI optional)
• Panel-mount with VESA mounting option
• Resistive and SAW touch options; protection glass available
• 600 nits panel brightness; fanless metal housing

Overview
This R10L600-PMP1 10.4-inch panel-mount display is designed for embedded, commercial and industrial applications. It provides low power consumption and efficient heat dissipation for continuous operation in production environments. Multiple mounting options (panel and VESA) and common signal interfaces simplify integration with embedded boards, HMIs and control systems. The fanless metal enclosure and aluminum bezel enhance reliability in factory and commercial settings.

Certifications

• CE
• FCC

Technical specifications

• Size: 10.4 inches; Resolution: 800 × 600; Panel Brightness: 600 nits; Contrast Ratio: 400:1; View Angles: 70, 70, 70, 60; Display Color: 262K
• Touch / Glass: Resistive touch; Protection glass without touch (optional); SAW touch (optional)
• Ports: 1 × USB (for touch); Video: 1 × VGA; 1 × HDMI (optional); 1 × DVI (optional); Audio line in (3.5 mm) (optional); 2 × speakers (optional)
• Environment: Operating humidity 10%–90% RH non‑condensing; Operating temperature 0°C to 50°C; Storage temperature −10°C to 60°C
• Mechanical: Dimensions 284 × 234 × 43 mm; Cut out 264 × 216 mm; Weight 1.7 kg; Mounting: Panel mount / VESA
• Enclosure & Cooling: Metal housing with aluminum bezel; Fanless design
• Power & Controls: 12V DC input (24V optional); Control keys: -, +, Power, Esc, Enter
• Accessories: 1 × VGA cable; 1 × HDMI cable; 100–240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product). Optional: remote controller
