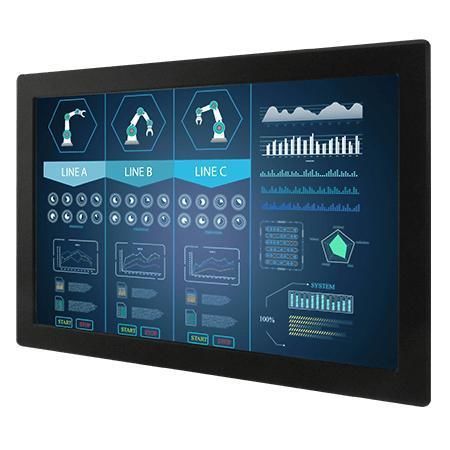

24" display W24L100-PMS1

resistive touch screencolor1920 x 1200

Overview
Winmate W24L100-PMS1 is a 24-inch panel-mount display designed for embedded, commercial and industrial applications. It provides multiple mounting options and a rugged metal enclosure for integration in production and control environments.

Key features

• 24.0-inch, 1920 x 1200 resolution
• VGA input standard; HDMI and DVI optional
• Panel mount with VESA support
• Resistive touch or protection glass (optional)

Certifications

• CE
• FCC

Display

• Size: 24.0 inches
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass without touch (Optional)
• Resolution: 1920 x 1200
• Panel Brightness: 300 nits
• Contrast Ratio: 1000:1
• Viewing Angles: 89/89/89/89
• Display Color: 16.7M Colors
• Active Area: 518.4 x 324.0 mm

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C

I/O Ports

• USB: 1 x USB for touch screen
• Video: 1 x VGA (standard); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)

Mechanical

• Dimensions (W x H x D): 604 x 410 x 65 mm
• Cut out: 556 x 362 mm
• Weight: 8.5 kg
• Mounting: Panel mount; VESA mount (Optional)
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design

Power

• Power Rating: 12V DC in (standard); 24V DC in (optional)

Control

• Buttons: 5 keys — -, +, Power, Esc, Enter

Accessories

• Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional: Remote controller (varies by product)

Product Highlights

• Multiple mounting options for panel, wall, desk and VESA installations
• Standard VGA plus optional HDMI/DVI for broad system compatibility
• Rugged metal enclosure with aluminum bezel suitable for industrial environments
• Fanless design and low power consumption for continuous operation

Specifications

• Model: W24L100-PMS1
• Brand: Winmate
• Display size: 24.0 inches
• Resolution: 1920 x 1200
• Brightness: 300 nits
• Contrast ratio: 1000:1
• Viewing angles: 89/89/89/89
• Colors: 16.7M
• Active area: 518.4 x 324.0 mm
• Touch options: Resistive touch (optional) or protection glass (optional)
• Video inputs: VGA (standard); HDMI (optional); DVI (optional)
• USB: 1 x (for touch)
• Audio: 3.5mm line-in (optional); 2 x speakers (optional)
• Dimensions: 604 x 410 x 65 mm
• Cut-out: 556 x 362 mm
• Weight: 8.5 kg
• Mounting: Panel mount; VESA (optional)
• Enclosure: Metal housing with aluminum bezel
• Operating temp: 0°C to 50°C; Storage temp: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing
• Power input: 12V DC (standard); 24V DC (optional)
• Cooling: Fanless
• Certification: CE, FCC
