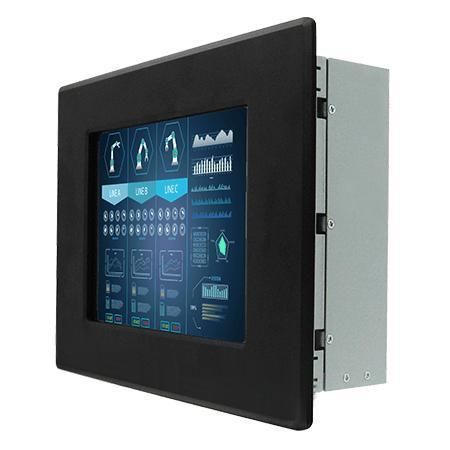

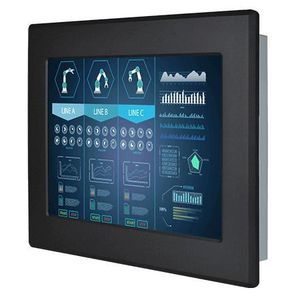

8.4" display R08T200-PMT1HB

TFT LCDresistive touch screencolor

Overview
This 8.4 in panel-mount high-brightness display (model R08T200-PMT1HB) is engineered for embedded and industrial applications requiring continuous, reliable operation. It features low power consumption and an effective thermal design for long-term use, with options for optical bonding and protective glass to improve visibility in bright or humid environments.

Highlights

• 8.4 in, 800 x 600 resolution
• High brightness (1000 nits) suitable for high ambient light
• Panel mount and VESA mount support for flexible installation
• Diversified signal inputs: VGA standard, HDMI and DVI optional
• Multiple touch / glass options: resistive, SAW, or protection glass

Mounting & Integration
The display supports panel-mount installation and VESA mount configurations to simplify integration into operator panels, consoles and embedded systems. Standard accessories include VGA and HDMI cables and VESA screws; power options include a 12V DC input and universal AC adapter.

Interfaces & Accessories

• Video: 1 x VGA; 1 x HDMI (optional); 1 x DVI (optional)
• USB: 1 x USB for touch functionality
• Audio: line-in (3.5 mm) and optional speakers
• Controls: 5 keys (-, +, Power, Esc, Enter)
• Accessories included: VGA cable, HDMI cable, 100–240V AC-to-DC adapter, power cord, manual; optional remote controller

Certifications
CE, FCC

Technical specifications

• Model: R08T200-PMT1HB
• Brand: Winmate
• Size: 8.4 inches
• Resolution: 800 x 600
• Panel Brightness: 1000.0 nits
• Contrast Ratio: 600:1
• Viewing Angles: 80, 80, 60, 80
• Display Color: 16.2M Colors
• Active Area: 170.4 x 127.8 mm
• Touch / Glass: Resistive touch; Protection glass (no touch) optional; SAW touch optional
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Power Rating: 12V DC input
• IO: 1 x USB (touch); 1 x VGA; 1 x HDMI (opt); 1 x DVI (opt)
• Buttons: 5 keys: -, +, Power, Esc, Enter
• Accessories (included): VGA cable, HDMI cable, AC-to-DC adapter (100~240V), power cord, manual, VESA screws (varies by product)
