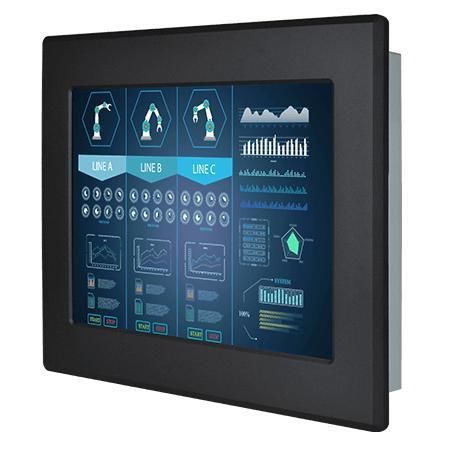

TFT LCD display R12L600-PMM2HB

resistive touch screencolorgraphic

Product Overview
This 12.1" high-brightness panel-mount display R12L600-PMM2HB is engineered for embedded, commercial and industrial applications. It features low power consumption, effective heat dissipation and a fanless metal housing for reliable long-term operation in production environments. The display supports panel mount and VESA mount and can be fitted with optically bonded anti-reflective protection glass to improve readability under direct sunlight and in high-humidity conditions. VGA and HDMI interfaces simplify integration; optional touch and I/O configurations enable customization.

Key Features

• 12.1", 1024 x 768 panel-mount display with high brightness (1000 nits)
• VGA and HDMI video inputs (HDMI optional)
• Panel mount and VESA mount options
• Optional touch technologies: Resistive, SAW; optional protection glass
• Fanless metal enclosure for industrial environments

Certifications

• CE
• FCC

Technical specifications

• Model: R12L600-PMM2HB
• Size: 12.1 inches
• Touch / Glass: Resistive Touch Screen; Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Resolution: 1024 x 768
• Panel Brightness: 1000.0 nits
• Contrast Ratio: 700:1
• View Angles: 80, 80, 70, 70
• Display Color: 16.2M Colors
• Active Area: 261.12 x 163.2 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen (Optional)
• Video: 1 x VGA; 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 324 x 274 x 43 mm
• Cut out: 302.5 x 242 mm
• Weight: 2.3 kg
• Mounting: VESA mount; Panel mount (Optional)
• Enclosure: Metal Housing
• Cooling System: Fanless Design
• Accessory: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product)
• Optional Accessory: Remote Controller (Optional, Varies by product)
• Power Rating: 12V DC in; 24V DC in (optional)
• Button: 5 Keys: -, +, Power, Esc, Enter
