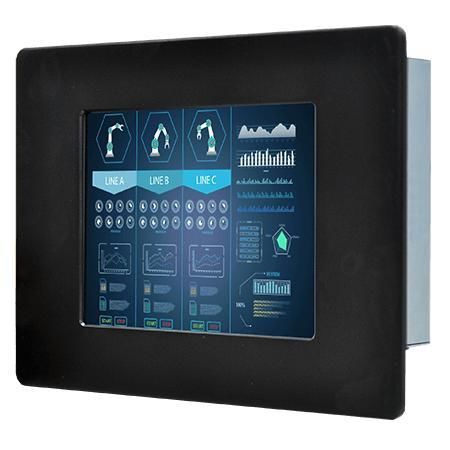

5.7" display R05T100-PMD1HB

LCDresistive touch screengraphic

Overview
Winmate 5.7-inch panel-mount high-brightness display R05T100-PMD1HB designed for embedded and industrial applications. Low power consumption and fanless thermal design enable continuous 24/7 operation in production and automation environments. Universal mounting supports panel mount and optional VESA mount. Optical-grade anti-reflective bonded front glass improves readability under direct light and reduces reflections.

Key Features

• 5.7", 640 x 480 resolution
• VGA and HDMI inputs (DVI optional)
• Panel mount; optional VESA mount
• High brightness: 900 nits
• Optional resistive touch or protection glass

Certifications

• CE
• FCC

Product Highlights

• Energy efficient: low power consumption with effective heat dissipation for long-term industrial use
• Flexible mounting options: panel, wall, desk or VESA depending on SKU
• Enhanced readability: optical bonding and anti-reflective glass reduce reflections and improve contrast in bright or humid environments
• Broad connectivity: VGA and HDMI interfaces (DVI optional) for easy integration with embedded boards and systems
• Industrial reliability: rugged metal enclosure and fanless design for factory environments; modules assembled in clean room
• Customization available: panel size, logo, LCD brightness, glass treatment, display ports and regional power plugs

Technical specifications

• Model: R05T100-PMD1HB
• Display size: 5.7 inches
• Resolution: 640 x 480
• Panel brightness: 900 nits
• Contrast ratio: 300:1
• Viewing angles (°): 70, 70, 40, 60
• Display colors: 262K colors
• Active area: 115.2 x 86.4 mm
• Touch / Glass: Resistive touch (optional) or Protection glass w/o touch (optional)
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
• USB port: 1 x USB for touch
• Video inputs: 1 x VGA; 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 x speaker (optional)
• Dimensions (W x H x D): 198 x 162 x 41 mm
• Cut-out size: 170 x 138 mm
• Mounting: Panel mount; VESA mount (optional)
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Accessories included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: Remote controller (optional, varies by product)
• Power rating: 12V DC in
• Control buttons: 5 keys: -, +, Power, Esc, Enter
