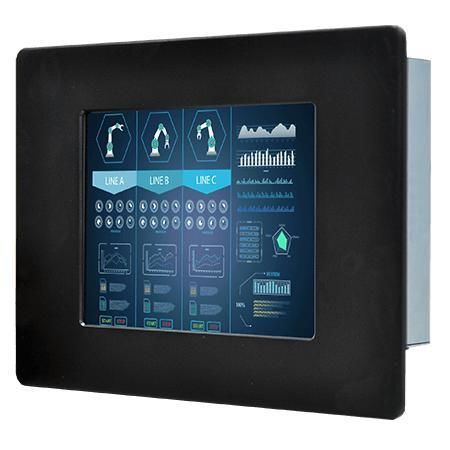

TFT LCD display R06L200-PMA1

resistive touch screencolor640 x 480

Overview
This 6.5-inch panel mount display R06L200-PMA1 is designed for embedded and industrial applications. It provides a 640 x 480 resolution panel, VGA and HDMI signal inputs, and supports both panel and VESA mounting for flexible installation in production environments.

Key features

• 6.5-inch, 640 x 480
• VGA and HDMI inputs
• Panel mount and VESA mount options
• Fanless metal housing with aluminum bezel

Certifications

• CE
• FCC

Product details
Low power consumption and an effective heat dissipation design enable reliable long-term operation in production and industrial environments.
Universal mounting options allow wall, desk, panel and VESA installations for flexible deployment across applications.
Standard VGA interface with optional HDMI and DVI inputs simplifies integration with embedded boards and systems; USB port available for touch screen connectivity.
Available with resistive touch screen or protection glass without touch; multiple customization options include product size, customer logo, LCD brightness, glass surface treatment, display ports and regional power plug options.

Technical specifications

• Model: R06L200-PMA1
• Brand: Winmate
• Size: 6.5 inches
• Resolution: 640 x 480
• Touch / Glass: Resistive Touch Screen (Optional); Protection Glass without Touch Function (Optional)
• Panel Brightness: 700.0 nits
• Contrast Ratio: 600:1
• View Angles: 80, 80, 70, 70
• Display Color: 16.2M Colors
• Active Area: 132.48 x 99.36 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA; 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 218 x 164 x 50 mm
• Cut out: 191 x 143 mm
• Weight: 1.2 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessory: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product)
• Optional Accessory: Remote Controller (Optional, Varies by product)
• Power Rating: 12V DC in
• Control Buttons: 5 Keys: -, +, Power, Esc, Enter
