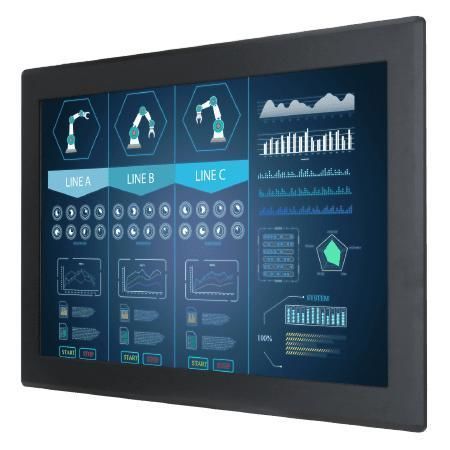

24" display W24L100-PMA2

resistive touch screencolor1920 x 1080

Overview
This 24-inch panel mount display W24L100-PMA2 is designed for embedded, commercial and industrial applications. It features low power consumption, effective heat dissipation, a fanless design and a metal housing with an aluminum bezel for long-term operation in production and commercial environments. The display supports multiple mounting options and standard video interfaces for straightforward integration.

Key Features

• 24-inch panel, 1920 x 1080 (Full HD)
• VGA input; HDMI and DVI optional
• Panel mount with optional VESA mounting
• Multiple touch and glass options: resistive, SAW or protection glass
• Metal enclosure with aluminum bezel and fanless cooling

Certifications

• CE
• FCC

Features & Benefits

• Low power consumption and effective heat dissipation suitable for continuous operation.
• Flexible mounting: panel mount and VESA options for wall, desk or panel installations.
• Standard signal interfaces (VGA, optional HDMI/DVI) for compatibility with embedded boards and industrial systems.
• High reliability with industrial-grade enclosure and fanless design to reduce maintenance.
• Good image performance: Full HD 1920 x 1080, 250 nits brightness and 3000:1 contrast.
• Configurable ports, touch options and accessories to adapt to project requirements.

Technical specifications

• Model: W24L100-PMA2
• Size: 24.0 inches
• Resolution: 1920 x 1080
• Panel Brightness: 250.0 nits
• Contrast Ratio: 3000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 527.04 x 296.46 mm
• Touch / Glass: Resistive touch; Protection glass w/o touch (optional); SAW touch (optional)
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for touch screen
• Video Inputs: 1 x VGA; 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) optional; 2 x speaker optional
• Dimension: 606 x 376 x 65 mm
• Cut out: 560 x 330 mm
• Weight: 8.5 kg
• Mounting: Panel mount; VESA mount (optional)
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Accessories included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (optional)
• Power Rating: 12V DC in; 24V DC in (optional)
• Control Buttons: 5 keys: -, +, Power, Esc, Enter
