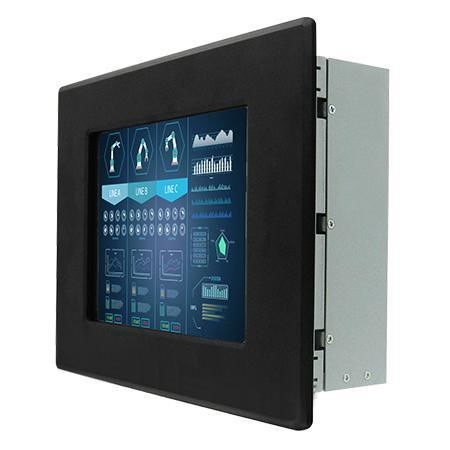

8.4" display R08L200-PMU1

resistive touch screencolor800 x 600

Overview
Winmate 8.4-inch panel-mount industrial display R08L200-PMU1 designed for embedded and industrial applications. Engineered for low power consumption, effective heat dissipation and fanless operation for continuous use in production environments. Universal mounting options and multiple signal interfaces enable flexible system integration.

Key features

• 8.4-inch diagonal, 800 x 600 resolution
• VGA and HDMI inputs (DVI optional)
• Panel-mount and VESA-mount compatible
• Resistive touch standard; optional protection glass or SAW touch
• Panel brightness 600 nits and contrast ratio 600:1

Certifications

• CE
• FCC

Technical specifications

• Size: 8.4 inches
• Touch / Glass: Resistive Touch Screen; Protection Glass w/o Touch (Optional); SAW Touch (Optional)
• Resolution: 800 x 600
• Panel Brightness: 600.0 nits
• Contrast Ratio: 600:1
• Viewing Angles: 75 / 75 / 60 / 70 degrees
• Display Color: 262K Colors
• Active Area: 170.4 x 127.8 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• USB: 1 x USB for touch
• Video: 1 x VGA; 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5 mm) (Optional); 2 x speaker (Optional)
• Dimensions: 275 x 216 x 56 mm
• Cut-out: 252 x 185 mm
• Weight: 2 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal, fanless design
• Power: 12V DC input
• Controls: 5 keys: -, +, Power, Esc, Enter

Accessories & options

• Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional: DVI interface; audio speakers; remote controller; protection glass variants; custom brightness or logo options (varies by product)
