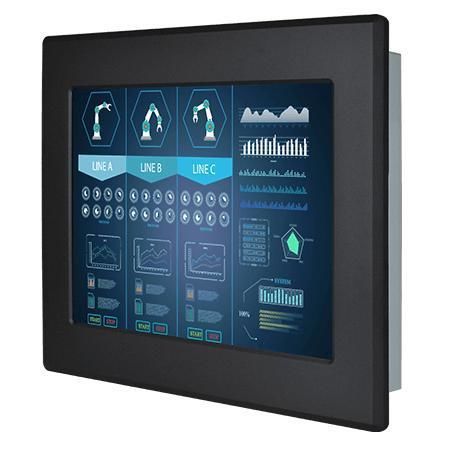

12.1" display R12T600-PML1

TFT LCDresistive touch screencolor

Overview
Winmate R12T600-PML1 is a 12.1 inches panel-mount industrial display designed for embedded, commercial and industrial applications. It features low power consumption, effective heat dissipation and a metal housing suitable for continuous operation in production environments.

Key features

• 12.1 inches, 800 x 600 resolution
• VGA input (standard); HDMI and DVI optional
• Panel mount and VESA mounting options
• Resistive touch (default); protection glass or SAW touch optional
• Panel brightness 450 nits, contrast ratio 700:1

Applications & integration
Compact panel form factor and standard video interfaces enable integration into control panels, operator consoles, kiosks and embedded systems. Universal mounting options and optional I/O simplify installation in diverse industrial workflows.

Certifications

• CE
• FCC

Technical specifications

• Model: R12T600-PML1
• Active area: 246 x 184.5 mm
• Display color: 16.2M; viewing angles: 80, 80, 75, 65
• Operating humidity: 10% to 90% RH non-condensing; operating temperature: 0°C to 50°C; storage: -10°C to 60°C
• Dimensions: 324 x 274 x 43 mm; cut out: 303 x 252 mm; weight: 2.3 kg
• Enclosure: metal housing with aluminum bezel; fanless cooling
• USB: 1 x for touch; video: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional)
• Audio: line-in 3.5 mm (optional); 2 x speaker (optional)
• Controls: 5 keys (-, +, Power, Esc, Enter)
• Power: 12V DC input (standard); 24V DC optional

Accessories & customization

• Included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
• Optional: remote controller; customization for brightness, glass treatment, I/O and enclosure options
