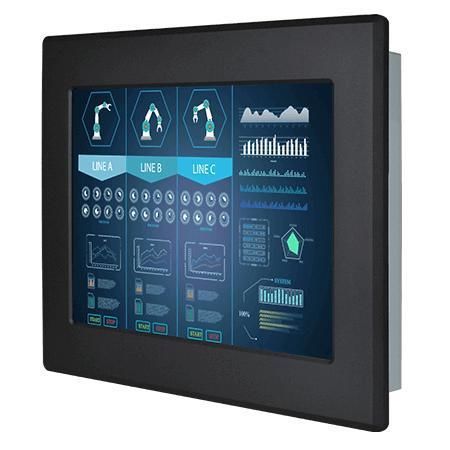

12.1" display R12L600-PMM2

LCDtouch screenresistive touch screen

Key Features

• 12.1-inch, 1024 x 768 panel mount display
• VGA (default) and HDMI input
• Panel mount and VESA mounting options
• Metal housing, fanless design

Overview
The R12L600-PMM2 from Winmate is an industrial panel-mount display engineered for continuous operation in production and embedded environments. It combines a 12.1-inch 1024 x 768 LCD with multiple mounting and interface options for straightforward system integration.

Low power and thermal management
The display features a low-power design and effective heat dissipation enabling extended operation in factory and commercial settings while minimizing energy use.

Mounting and installation
Supports panel cut-out mounting and VESA mounting for flexible installation on control panels, enclosures or bulkheads. Universal mounting options facilitate wall or desk installation where required.

Signal interfaces
Standard VGA input with optional HDMI and DVI support allows connection to embedded boards, industrial PCs and video sources. USB for touch is available as an option when a touch variant is selected.

Reliability and applications
Built with a metal enclosure and fanless design, the R12L600-PMM2 is suited to HMI, machine control and embedded display applications in industrial and commercial environments.

Customization and ports
Available customization includes panel size, LCD brightness, glass surface treatment and selection of display ports. Regional power plug and input voltage options (12V DC standard, 24V DC optional) are supported.

Certifications

• CE
• FCC

Technical specifications

• Size: 12.1 inches
• Touch / Glass: Resistive touch (default); Protection glass w/o touch (optional); SAW touch (optional)
• Resolution: 1024 x 768
• Panel Brightness: 500 nits
• Contrast Ratio: 1000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.2M Colors
• Active Area: 245.76 x 184.32 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• IO Ports: 1 x USB for touch (optional); Video: 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional)
• Audio: Audio line in (3.5mm) (optional); 2 x Speaker (optional)
• Mechanical Dimension: 324 x 274 x 43 mm
• Cut out: 303 x 252 mm
• Weight: 2.3 kg
• Mounting: Panel mount (default); VESA mount (optional)
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (optional)
• Power Rating: 12V DC input (24V DC input optional)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
