10.4" display R10L100-PMP3
TFT LCDresistive touch screencolor

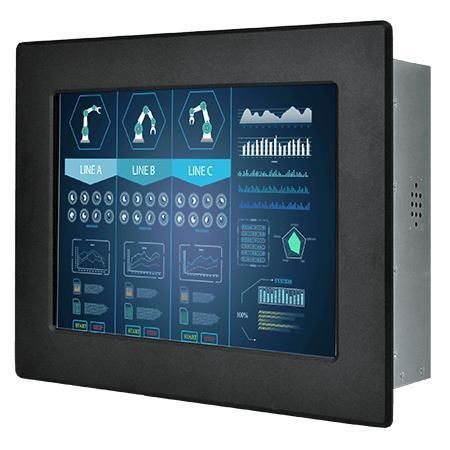

10.4" display - R10L100-PMP3 - Winmate, Inc. - TFT LCD / resistive touch screen / color
10.4" display - R10L100-PMP3 - Winmate, Inc. - TFT LCD / resistive touch screen / color
10.4" display - R10L100-PMP3 - Winmate, Inc. - TFT LCD / resistive touch screen / color - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
TFT LCD, resistive touch screen
Type
color
Format
640 x 480
Screen size
10.4"
Applications
industrial
Interface
HDMI, VGA, USB
Configuration/mounting
panel-mount, VESA mounting
Other characteristics
with cover glass
Length

284 mm
(11.181 in)

Width

234 mm
(9.2126 in)

Height

43 mm
(1.6929 in)

Operating temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Description

Short name
R10L100-PMP3 — 10.4 inches panel mount display

Key features
  • 10.4 inches, 640 x 480
  • VGA input (HDMI / DVI optional)
  • Panel mount; VESA compatible
  • 450 nits panel brightness; 700:1 contrast ratio
  • Resistive touch, SAW touch or protection glass options


Overview
  • Low power consumption: Designed for low energy use and effective heat dissipation to support long-term operation in production environments.
  • Easy mounting: Universal mounting options including panel and VESA mount simplify installation for industrial and commercial applications.
  • Multiple signal interfaces: Standard VGA with optional HDMI and DVI for integration with embedded boards and control systems.
  • High reliability: Rugged metal housing with aluminum bezel and fanless design for dependable operation in factory environments.
  • Outstanding image quality: Industrial-grade display modules assembled under controlled conditions to ensure consistent image performance.
  • Customization options: Configurable size, customer logo, panel brightness, glass surface treatment, display ports and power plug styles (model dependent).


Certifications
  • CE
  • FCC


Technical specifications
  • Model: R10L100-PMP3
  • Size: 10.4 inches
  • Resolution: 640 x 480
  • Panel Brightness: 450 nits
  • Contrast Ratio: 700:1
  • View Angles: 80, 80, 80, 60
  • Display Color: 16.2M Colors
  • Active Area: 211.2 x 158.4 mm
  • Touch / Glass: Resistive Touch Screen; Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
  • Operating Humidity: 10% to 90% RH, Non-Condensing
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -10°C to 60°C
  • Certification: CE, FCC
  • USB Port: 1 x USB for Touch Screen
  • Video: 1 x VGA; 1 x HDMI (Optional); 1 x DVI (Optional)
  • Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
  • Dimension: 284 x 234 x 43 mm
  • Cut out: 264 x 216 mm
  • Weight: 1.5 kg
  • Mounting: VESA mount; Panel mount (Optional)
  • Enclosure: Metal Housing with Aluminum Bezel
  • Cooling System: Fanless Design
  • Accessory: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product)
  • Optional Accessory: Remote Controller (Optional, Varies by product)
  • Power Rating: 12V DC in; 24V DC in (optional)
  • Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
