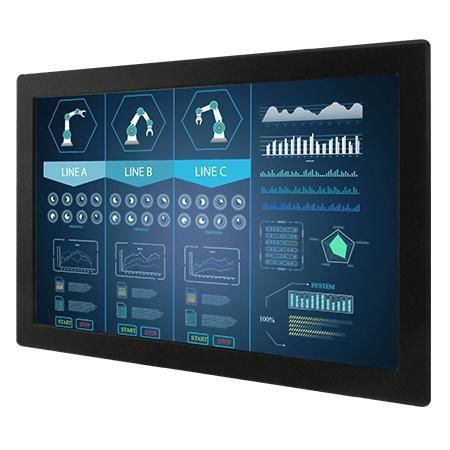

32" display W32L300-PMA3

LCDcolor1920 x 1080

Overview
The W32L300-PMA3 is a 32-inch panel-mount display engineered for embedded, commercial and industrial applications. Designed for low power consumption and effective heat dissipation, it supports long continuous operation in production and factory environments. The unit provides flexible mounting (panel and VESA), common video interfaces and a rugged metal enclosure with fanless cooling for reliable industrial use.

Key Features

• 32-inch, 1920 x 1080 Full HD
• VGA and HDMI inputs (HDMI optional)
• Panel-mount and VESA-mount options
• 400 nits panel brightness; 4000:1 contrast ratio
• Protection glass
• Fanless design and metal enclosure

Certifications

• CE
• FCC

Product Highlights

• Low power consumption: Optimized for energy efficiency and continuous operation with effective thermal management.
• Easy mounting: Universal options suitable for panel, wall, desk and VESA installations.
• Multiple signal interfaces: VGA and HDMI supported; DVI available as option for integration with embedded boards and industrial equipment.
• High reliability: Metal enclosure and fanless design reduce maintenance and increase uptime in production environments.
• Consistent image quality: Industrial-grade LCD module with stable color and contrast.
• Customization: Options for product size, logo, panel brightness, glass surface treatment, display ports and regional power plugs.

Accessories

• Included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)
• Optional: Remote controller (varies by product)

Technical specifications

• Size: 32.0 inches
• Touch / Glass: Protection Glass
• Resolution: 1920 x 1080
• Panel Brightness: 400.0 nits
• Contrast Ratio: 4000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 698.4 x 392.85 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for touch screen
• Video: 1 x VGA; 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 x speaker (optional)
• Dimension (WxHxD): 840 x 520 x 63 mm
• Cut out: 805 x 485 mm
• Mounting: VESA mount; Panel mount (optional)
• Enclosure: Metal
• Cooling System: Fanless design
• Power Rating: 12V DC in; 24V DC in (optional)
• Buttons: 5 keys: -, +, Power, Esc, Enter
• Accessories: VGA cable; HDMI cable; AC-DC adapter; Power cord; Manual; VESA screws
