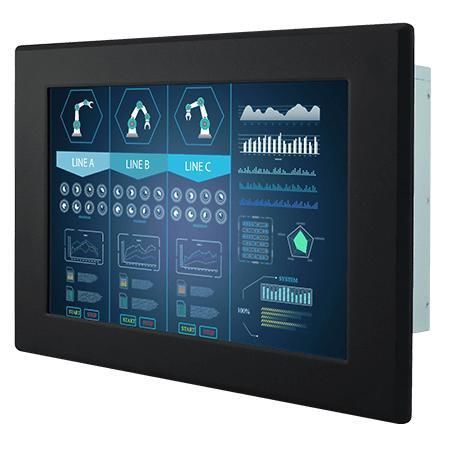

15.6" display W15L100-PMA2HB

TFT LCDresistive touch screencolor

Key Features

• 15.6-inch, 1366 x 768
• VGA and HDMI input (DVI optional)
• Panel mount and VESA mount
• High brightness: 1300 nits
• Fanless metal housing with aluminum bezel
• Touch / glass options available

Overview
W15L100-PMA2HB is a 15.6-inch panel-mount high-brightness display designed for embedded, commercial and industrial applications. It delivers 1300 nits for improved readability in bright or high-humidity environments, a rugged metal enclosure and multiple mounting options for straightforward integration into industrial systems.

Product Highlights

• Low power consumption and effective heat dissipation for long-term operation in production environments
• Easy mounting: supports panel mount and VESA mount for flexible installation
• High brightness with optical bonding and anti-reflective protective glass to reduce reflections and increase contrast
• Signal interfaces: VGA and HDMI standard; DVI available as option
• Industrial reliability: rugged components and fanless design for 24/7 operation
• Customization: options for panel size, brightness, glass treatment, display ports and regional power plugs

CERTIFICATIONS

• CE
• FCC

Technical specifications

• Model: W15L100-PMA2HB
• Brand: Winmate
• Size: 15.6 inches
• Resolution: 1366 x 768
• Touch / Glass: Resistive Touch Screen; Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Panel Brightness: 1300 nits
• Contrast Ratio: 500:1
• View Angles: 85, 85, 80, 80
• Display Color: 16.7M Colors
• Active Area: 344.232 x 195.536 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA; 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Mechanical Dimensions: 400 x 280 x 46 mm
• Cut out: 370 x 252 mm
• Weight: 3 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessory (standard): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Power Rating: 12V DC in; 24V DC in (optional)
• Control / Buttons: 5 Keys: -, +, Power, Esc, Enter
