LCD monitor R12T600-PML1HB

resistive touch screenindustrial12.1"

Overview

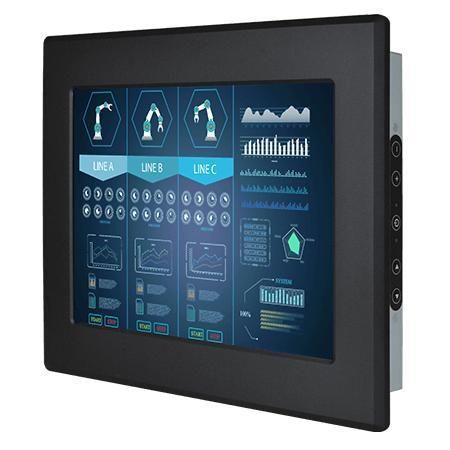

The R12T600-PML1HB is a 12.1-inch panel-mount high-brightness industrial display engineered for continuous 24/7 operation in demanding environments. It provides multiple mounting options, diversified signal interfaces and a bonded anti-reflective front glass to improve sunlight readability.

Key Features

• 12.1 inches, 800 x 600 panel-mount high-brightness display (1000 nits)
• VGA input (default) and HDMI (optional); DVI optional
• Panel mount (default) and VESA mount options
• Front protection glass with optical bonding to reduce reflections
• Fanless design with metal housing and aluminum bezel

Certifications

• CE
• FCC

Product details

• Designed for low power consumption and effective heat dissipation to support long-term operation in production environments
• Mounting flexibility for panel installation or VESA-based mounting simplifies integration into machinery and control cabinets
• Optional touch and glass configurations: Resistive touch (default); Protection glass without touch (optional); SAW touch (optional)
• Interfaces include 1 x USB for touch, 1 x VGA (default), 1 x HDMI (optional), 1 x DVI (optional); audio line-in and speakers optional
• Accessories typically included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)

Technical specifications

• Display size: 12.1 inches
• Resolution: 800 x 600
• Panel brightness: 1000 nits
• Contrast ratio: 700:1
• Viewing angles: 80, 80, 75, 65
• Display color: 16.2M colors
• Active area: 246 x 184.5 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0 °C to 50 °C
• Storage temperature: -10 °C to 60 °C
• Dimensions: 324 x 274 x 43 mm
• Cut out: 303 x 222 mm
• Weight: 2.3 kg
• Mounting: VESA mount (default); Panel mount (optional)
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Power: 12 V DC input (24 V DC optional)
• Controls: 5 keys: -, +, Power, Esc, Enter
