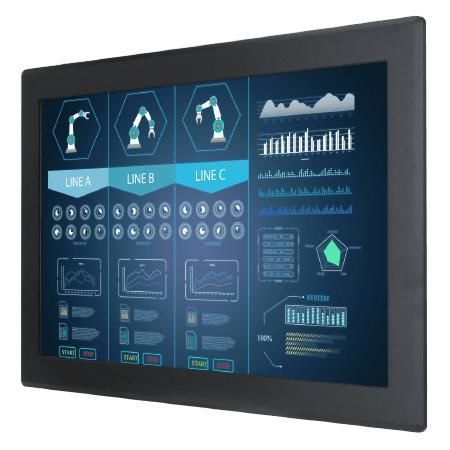

24" display W24L100-PMA2

touch screenresistive touch screencolor

Overview
This 24-inch panel-mount display W24L100-PMA2 is designed for embedded, commercial and industrial applications. It offers Full HD 1920 x 1080 resolution, multiple signal inputs and flexible mounting (panel mount and VESA) for straightforward integration into control panels, operator stations and embedded systems.

Key Features

• 24", 1920 x 1080 panel-mount display
• VGA and HDMI inputs (HDMI optional)
• Panel mount and VESA mount support
• Touch/glass options: resistive touch, protection glass (no touch), SAW touch (optional)

Certifications

• CE
• FCC

Applications

• Integration in embedded systems, industrial control panels, operator terminals, kiosks and commercial displays

Technical specifications

• Model: W24L100-PMA2
• Brand: Winmate
• Display - Size: 24.0 inches
• Display - Resolution: 1920 x 1080
• Display - Panel Brightness: 250.0 nits
• Display - Contrast Ratio: 3000:1
• Display - View Angles: 89, 89, 89, 89
• Display - Display Color: 16.7M Colors
• Display - Active Area: 527.04 x 296.46 mm
• Touch / Glass - Options: Resistive Touch Screen; Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Environment - Operating Humidity: 10% to 90% RH, Non-Condensing
• Environment - Operating Temperature: 0°C to 50°C
• Environment - Storage Temperature: -10°C to 60°C
• Certification: CE, FCC
• IO Ports - USB Port: 1 x USB for Touch Screen
• IO Ports - Video: 1 x VGA; 1 x HDMI (Optional); 1 x DVI (Optional)
• IO Ports - Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Mechanical - Dimension: 606 x 376 x 65 mm
• Mechanical - Cut out: 560 x 330 mm
• Mechanical - Weight: 8.5 kg
• Mechanical - Mounting: VESA mount; Panel mount (Optional)
• Mechanical - Enclosure: Metal Housing with Aluminum Bezel
• Mechanical - Cooling System: Fanless Design
• Accessory - Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product)
• Accessory - Optional: Remote Controller (Optional, Varies by product)
• Power - Power Rating: 12V DC in; 24V DC in (optional)
• Control - Button: 5 Keys: -, +, Power, Esc, Enter
