PCAP touchscreen panel PC R15IT3S-MLA3FP
multitouch screen15"Intel® Core™ i5-1135G7

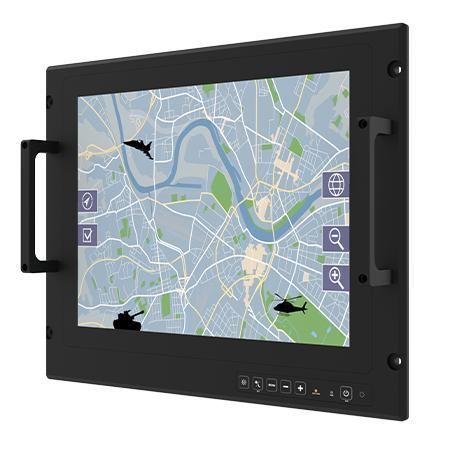

PCAP touchscreen panel PC - R15IT3S-MLA3FP - Winmate, Inc. - multitouch screen / 15" / Intel® Core™ i5-1135G7
PCAP touchscreen panel PC - R15IT3S-MLA3FP - Winmate, Inc. - multitouch screen / 15" / Intel® Core™ i5-1135G7
PCAP touchscreen panel PC - R15IT3S-MLA3FP - Winmate, Inc. - multitouch screen / 15" / Intel® Core™ i5-1135G7 - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP touchscreen, multitouch screen
Display size
15"
Processor
Intel® Core™ i5-1135G7, Intel® Core™ i5-1145G7
Resolution
1024 x 768
Operating system
Linux® Ubuntu™, Windows 10 IoT Enterprise, Windows 11 IoT Enterprise
Construction
fanless, aluminum frame, in metal housing
Mounting
VESA mounting, rack-mounted
Protection level
rugged, MIL-STD-810, MIL-STD-461F
Other characteristics
wide temperature range
Memory size

Min.: 4 GB

Max.: 32 GB

Description

Key Features
  • Intel® Core™ i5-1135G7 2.4 GHz (turbo to 4.2 GHz)
  • Anti-corrosion metal housing; fanless design
  • Projected capacitive multi-touch (PCAP)
  • Compliant with MIL-STD-810G/H and MIL-STD-461E/F/G
  • Flush rack / rack-mount mechanical design (8U)
  • Convenient on-screen display (OSD) controls with physical 6-key OSD pad
  • AC 110–240 V power input (default); isolated DC 9–36 V input (optional)
  • Built-in ambient light sensor for automatic brightness control


Certifications
  • MIL-STD-461F / MIL-STD-461G (EMC)
  • MIL-STD-810G / MIL-STD-810H (environmental)
  • FCC
  • CE


Overview
  • Model: Winmate R15IT3S-MLA3FP — a 15-inch Defence Console Rack Panel PC engineered for command centers and defence applications.
  • Designed and tested to defence-grade environmental and EMC standards to ensure reliable operation in mission-critical and harsh environments.
  • Ergonomic 8U rack-mount form factor with flush mounting for console integration; defence-grade power/connectors (MIL-DTL-38999 Type I standard, Type III optional) for system compatibility.
  • Front-panel PCAP touchscreen combined with physical OSD keys enables quick operator interaction; integrated light sensor adjusts display brightness automatically.


Technical specifications
  • Commercial designation: R15IT3S-MLA3FP
  • Display size: 15.0 inches
  • Touch / Glass: Projected Capacitive Multi Touch Screen (default); PCAP with ITO Film (optional)
  • Resolution: 1024 x 768
  • Panel brightness: 500 nits
  • Contrast ratio: 2500:1
  • Viewing angles: 88,88,88,88
  • Active area: 304.1 x 228.1 mm
  • Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz) default; Intel® Core™ i5-1145G7 optional
  • Memory: 4 GB default; optional 8 GB / 16 GB / 32 GB
  • Storage: from 128 GB up to 2 TB
  • Ethernet controller: 2 x Intel® Ethernet Controller (2 x RJ-45)
  • Security: TPM 2.0
  • Operating systems (optional): Windows 11 IoT Enterprise SAC (64-bit); Windows 10 IoT Enterprise (64-bit); Linux Ubuntu 22.04
  • Operating humidity: 10% to 95% RH
  • Operating temperature: -20 ~ 60 °C
  • Storage temperature: -30 ~ 70 °C
  • Vibration: USA MIL-STD-810H Method 514.8 Procedure I; NATO STANAG 4370/AECTP400 (optional)
  • Drop: USA MIL-STD-810H Method 516.8; NATO STANAG equivalents (optional)
  • TEMPEST (optional): NSA NSTISSAM TEMPEST/1-92; NATO SDIP-27
  • Compliance (MIL-STD-461G): CE101, CE102, RE101, RE102, CS118 default; additional CS/RS options available
  • Certification: CE, FCC
  • Accessories (standard): 1 x Manual (hardcopy); 1 x Driver CD; 1 x Power Cord (MIL-DTL-38999/1)
  • Dimensions: 402 x 321 x 70 mm
  • Mounting: Rack mount (default); VESA mount (optional)
  • Enclosure: Metal housing with aluminum bezel
  • Cooling system: Fanless design
  • USB ports: 2 x USB 3.2 Gen 1
  • Serial port: 1 x RS232 default (optional RS422/485)
  • LAN: 2 x RJ-45
  • Video: 1 x HDMI (optional)
  • Power rating: AC 100~240 V universal ±10% (default); DC 9~36 V ±10% (optional)
  • Control / OSD: 6-key OSD control pad (Power / Brightness DOWN, Brightness UP / Night, Day / Exit, Auto / Menu)
