TFT LCD panel PC R19IB3S-RKA3ML

resistive touch screen5-wire resistive touch screentouch screen

Overview

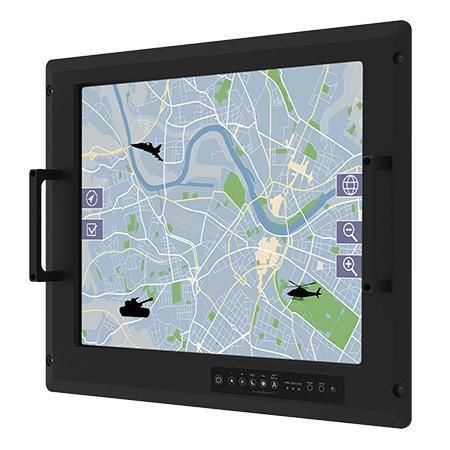

Winmate 19.0" Defence Console Rack Panel PC R19IB3S-RKA3ML, designed for defence and command-centre applications. Fanless architecture with anti-corrosion metal housing, flush rack / rack-mount mechanical design (9U) and defence-grade power connector (MIL-DTL-38999/1). Built and tested to MIL-STD-810G/H and MIL-STD-461F/G environmental and EMC standards.

Key Features

• 19.0" SXGA TFT LCD (1280 x 1024), 350 nits
• Intel® Celeron® N2930 processor (1.83 GHz, burst up to 2.16 GHz)
• Fanless cooling and anti-corrosion metal enclosure
• Flush Rack / Rack Mount mechanical design (9U)
• On-screen display (OSD) with 6-key OSD control pad
• AC 100–240 V input (default); isolated DC 9–36 V optional
• Built-in ambient light sensor for auto brightness
• Defence-grade power connector: MIL-DTL-38999/1

Display

• Size: 19.0 inches
• Resolution: 1280 x 1024 (SXGA)
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 85 / 85 / 80 / 80
• Active Area: 376.32 x 301.06 mm
• Touch / Glass options: AR protection glass (default); 5-wire resistive touch (optional); 5-wire resistive with EMI mesh filter (optional); EMI glass (optional)

System Specification

• Processor: Intel® Celeron® N2930 (1.83 GHz, up to 2.16 GHz)
• Memory: 1 x SO-DIMM DDR3L 1600 MHz, 4 GB (default); 8 GB optional
• Storage: 1 x mSATA SSD 128 GB (default); 256 GB / 512 GB options
• Ethernet: Dual Intel® Ethernet controllers (2 x RJ45)
• Operating System: Windows 10 IoT Enterprise (64-bit) optional; Ubuntu 20.04 optional
• WLAN / Bluetooth: optional support

Environment

• Operating Humidity: 10% to 95% RH
• Operating Temperature: 0 ~ 50 °C
• Storage Temperature: -10 ~ 60 °C
• Shock: USA MIL-STD-810H Method 516.8 – Procedure I; NATO STANAG 4370 / AECTP400 (optional)
• Vibration: USA MIL-STD-810H Method 514.8 – Procedure I; NATO STANAG 4370 / AECTP-401 (optional)
• TEMPEST: NSA NSTISSAM TEMPEST/1-92 (optional); NATO SDIP-27 (optional)

Compliance

• MIL-STD-461G: CE101, CE102, RE101, RE102, CS118 (default); additional MIL-STD-461 tests optional
• NATO STANAG 4370 / AECTP-501 compliance options
• MIL-STD-810H environmental test items (vibration, humidity, transit drop) with NATO equivalents optional

Certification

• CE
• FCC

IO Ports

• USB: 1 x USB 2.0, 1 x USB 3.0
• Serial: 1 x RS232 (default) / RS422 / RS485
• LAN: 2 x RJ45
• Video: 1 x HDMI (optional)

Mechanical

• Dimensions: 482.6 x 399.3 x 81.4 mm
• Mounting: VESA mount (default); rack mount optional (flush rack 9U)
• Enclosure: Metal housing with aluminum bezel, anti-corrosion finish
• Cooling: Fanless design

Accessory

• User manual (hardcopy)
• CD-ROM with driver utility
• Power cord MIL-DTL-38999/1

Power

• Power rating: AC 100~240 V, universal, ±10% (default); DC 9~36 V ±10% (optional, isolated)

Control

• 6-Key OSD control pad: Power / Brightness DOWN, Brightness UP / Night, Day / Exit, Auto / Menu

Technical specifications

• Product name: R19IB3S-RKA3ML
• Brand: Winmate
• Display: 19.0" SXGA (1280 x 1024), 350 nits, 1000:1
• Processor: Intel® Celeron® N2930
• Memory / Storage: 4 GB DDR3L default; mSATA 128 GB default (options available)
• IO summary: USB 2.0, USB 3.0, RS232/422/485, 2 x LAN, optional HDMI
• Certifications: CE, FCC
