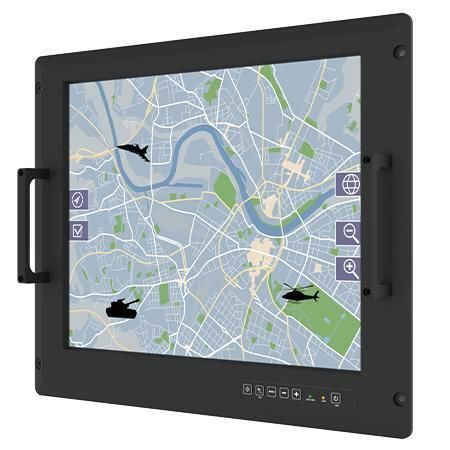

TFT LCD panel PC R19IT3S-RKA3ML

with touch screen5-wire resistive touch screen19"

Product
19" Intel® Core™ i5-1135G7 defence console rack panel PC, model R19IT3S-RKA3ML by Winmate. Fanless, anti-corrosion metal housing with flush rack mount mechanics. Built and tested to MIL-STD environmental and EMC standards for defence deployments. Default AC power input with optional isolated DC input and defence-grade power connector.

Key Features

• 19" SXGA (1280 x 1024) TFT LCD, 350 nits
• Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Fanless design and anti-corrosion metal enclosure
• Meets MIL-STD-810G/H environmental and MIL-STD-461 EMC standards
• Flush rack / rack mount mechanical design (typ. 9U)
• Built-in ambient light sensor for auto brightness control
• Convenient front OSD controls and touchscreen options
• AC 100~240 V input (default); optional isolation DC 9~36 V input
• Defence-grade power connector (MIL-DTL-38999/1)

Certifications

• MIL-STD-461G / MIL-STD-461F (as applicable)
• MIL-STD-810G / MIL-STD-810H
• CE
• FCC

Overview Details

• Reliable computing tailored for defence: internal reliability testing and compliance with MIL-STD environmental and EMC requirements to support operation in harsh defence environments.
• Command-center integration: ergonomic console form-factor with rack-mount compatibility for control rooms and operator stations.
• Defence-grade connectivity: MIL-DTL-38999 power connector and optional MIL-grade I/O for mission-critical interoperability.
• Operator usability: responsive touchscreen options and physical OSD keys for rapid front-panel control, plus auto-brightness via integrated light sensor.

Technical Specifications

• Model / Brand: R19IT3S-RKA3ML / Winmate
• Display: 19.0" (1280 x 1024, SXGA); Panel brightness 350 nits; Contrast 1000:1; View angles 85/85/80/80; Active area 376.32 x 301.06 mm; AR Protection Glass default; optional EMI ITO Glass, 5-wire resistive touch and EMI mesh variants.
• System: CPU Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz) default; optional i5-1145G7; Memory 4GB default (8/16/32GB optional); Storage from 128GB up to 2TB; 2 x Intel® Ethernet controller; TPM 2.0; Optional OS: Windows 11 IoT Enterprise SAC / Windows 10 IoT Enterprise / Ubuntu 22.04.
• Environment: Operating humidity 10%–95% RH; Operating temp -20 ~ 60 °C; Storage temp -30 ~ 70 °C; Vibration and drop options per MIL-STD-810H and NATO STANAG/AECTP methods; optional TEMPEST (NSA NSTISSAM TEMPEST/1-92, NATO SDIP-27).
• Compliance & EMC: MIL-STD-461G default items (CE101, CE102, RE101, RE102, CS118) with additional optional tests; NATO STANAG/AECTP-501 options.
• Mechanical: Dimensions 482.6 x 399.3 x 71.4 mm; Rack mount (default), panel or VESA mount optional; Metal housing with aluminum bezel; Fanless cooling.
• IO Ports: 2 x USB 3.0; Serial 1 x RS232/422/485 (default RS232); LAN 2 x RJ45; Optional HDMI.
• Power: AC 100~240 V universal ±10% (default); optional isolation DC 9~36 V ±10%; Defence-grade power cord MIL-DTL-38999/1.
• Control: 6-key OSD control pad (Power / Brightness DOWN; Brightness UP / Night; Day / Exit; Auto / Menu).
