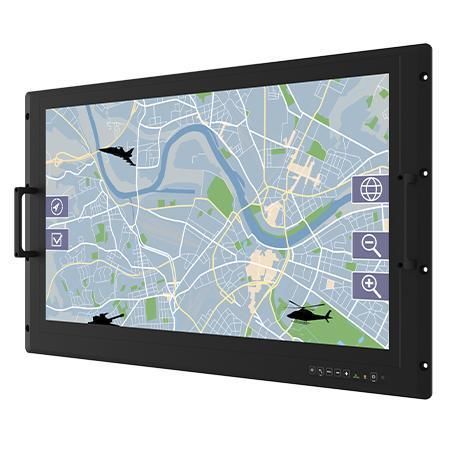

PCAP touchscreen panel PC W32IT3S-MLA3FP

multitouch screen32"Intel® Core™ i5-1135G7

Overview
Winmate W32IT3S-MLA3FP is a 32-inch defence console rack panel PC designed for command centers and mission-critical field use. It combines a projected capacitive multi-touch front panel, MIL-STD environmental and EMC compliance options, and a flush 8U rack-mount mechanical design for integration into defence consoles and control rooms.

Key Features

• Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz) (default)
• Projected capacitive multi-touch touchscreen with physical OSD buttons
• Anti-corrosion metal housing and fanless design
• Flush rack / rack-mount form factor (8U)
• AC 100–240 V power input (default); optional isolated DC 9–36 V input
• Built-in ambient light sensor for automatic brightness control

Highlights

• Designed and internally tested for defence environments to meet MIL-STD-810H and MIL-STD-461G requirements
• Ergonomic layout for command center consoles with rack-compatible mounting
• Optional MIL-DTL-38999 circular I/O connectors for cable-to-panel applications
• Front-panel touchscreen plus 6-key OSD pad for rapid local control

Certifications & Compliance

• Certifications: CE, FCC
• MIL-STD-461G coverage with default CE/RE/CS items; additional MIL-STD-461 items optional
• MIL-STD-810H environmental tests by default (vibration, humidity, transit drop); NATO STANAG/AECTP options available

Technical specifications

• Model: W32IT3S-MLA3FP
• Display: 32.0 inches; Projected Capacitive Multi Touch; 1920 x 1080; 400 nits; Contrast 4000:1; Active area 698.4 x 392.85 mm
• Processor: Intel Core i5-1135G7 (default); optional i5-1145G7
• Memory: 4 GB default; optional 8/16/32 GB
• Storage: 128 GB up to 2 TB
• Ethernet: 2 x Intel® Ethernet Controller (2 x RJ-45)
• Security: TPM 2.0 supported
• OS (optional): Windows 11 IoT Enterprise SAC (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04
• Environment: Operating humidity 10%–95% RH; operating temp 0 ~ 50°C; storage temp -10 ~ 60°C
• Shock & Vibration: MIL-STD-810H vibration and drop methods; NATO STANAG/AECTP options
• TEMPEST: NSA NSTISSAM TEMPEST/1-92 and NATO SDIP-27 available as options
• IO Ports: 2 x USB 3.2 Gen 1; 1 x serial (RS232 default / RS422/RS485 selectable); 2 x RJ-45 LAN; 1 x HDMI (optional)
• Mechanical: Dimensions 825 x 500 x 87.2 mm; Metal housing with aluminum bezel; VESA mount default, rear mount optional
• Power: AC 100–240 V (default); optional DC 9–36 V isolated
• Accessories: Manual (hardcopy), Driver CD, Power cord (MIL-DTL-38999/1)
• Control: 6-key OSD control pad (Power, Brightness Down/Up, Night/Day, Auto/Menu)
