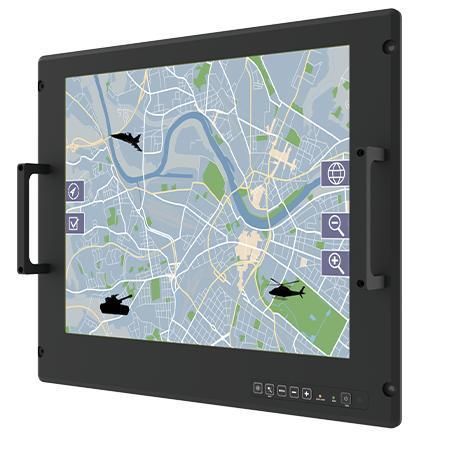

PCAP touchscreen panel PC R19IT3S-MLA3FP

multitouch screentouch screen19"

Overview
Reliable computing tailored for defence applications. Built and tested to MIL-STD-810G/H environmental and MIL-STD-461F/G EMC standards, this 19-inch rack Panel PC features a fanless, anti-corrosion metal enclosure and an ergonomic flush rackmount (8U) design for command-center deployments.

Key Features

• Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz) processor (upgradeable to i5-1145G7)
• Anti-corrosion metal housing with fanless thermal design
• Projected capacitive multi-touch (PCAP) touchscreen (default)
• Designed for flush rack / rack mount installation (8U)
• Defence-grade I/O options including MIL-DTL-38999 connectors (optional)
• 6-key OSD control pad and built-in ambient light sensor for auto-brightness
• AC 100–240 V standard input; optional isolated DC 9–36 V

Certifications

• MIL-STD-461F / MIL-STD-461G (EMC)
• MIL-STD-810G / MIL-STD-810H (environmental)
• FCC
• CE

Designed for Defence Command Centers
Ergonomic console layout and front-panel controls improve operator efficiency in control rooms. High-reliability connectors and configurable I/O ensure compatibility with mission-critical systems. The user-friendly touchscreen combined with physical OSD buttons enables fast local adjustments while the ambient light sensor maintains optimal readability.

Applications
Defence command & control, mission-critical consoles, air traffic control compatibility, vehicle and vessel console installations, and other harsh-environment deployments.

Technical specifications

• Model: R19IT3S-MLA3FP
• Display: 19.0 inches
• Touch / Glass: Projected Capacitive Multi Touch (PCAP) default; PCAP with ITO film optional
• Resolution: 1280 x 1024
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• View angles: 85 / 85 / 80 / 80
• Active area: 376.32 x 301.06 mm
• Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) default; i5-1145G7 optional
• Memory: 4GB default; 8GB/16GB/32GB optional
• Storage: 128GB up to 2TB
• Ethernet: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise SAC (64-bit); Windows 10 IoT Enterprise (64-bit); Linux Ubuntu 22.04
• Operating humidity: 10% to 95% RH
• Operating temperature: -20 ~ 60 °C
• Storage temperature: -30 ~ 70 °C
• Vibration / Drop: MIL-STD-810H (selected methods); NATO STANAG 4370 / AECTP400 optional
• TEMPEST: NSA NSTISSAM TEMPEST/1-92, NATO SDIP-27 (optional)
• Compliance: MIL-STD-461G (CE/RE/CS/RS series default; additional items optional)
• Certification: CE, FCC
• Accessories: 1 x Manual (hardcopy), 1 x Driver CD, 1 x Power cord (MIL-DTL-38999/1)
• Dimensions (W x H x D): 482.6 x 399.3 x 79.6 mm
• Mounting: Rack mount default; VESA optional
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless
• IO: 2 x USB 3.2 Gen 1; 1 x RS232 (default) / RS422 / RS485; 2 x RJ-45 LAN; 1 x HDMI optional
• Power rating: AC 100~240V ±10% default; DC 9~36V ±10% optional
• Control: 6-key OSD control pad (Power / Brightness DOWN, Brightness UP / Night, Day / Exit, Auto / Menu)
