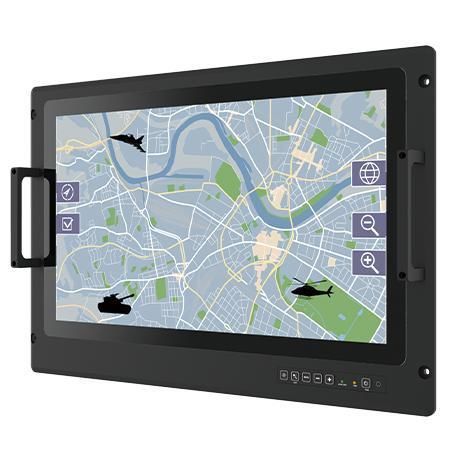

PCAP touchscreen panel PC W22IT3S-MLA3FP

multi-touch screen21.5"Intel® Core™ i5-1135G7

Overview
Defense console rack panel PC W22IT3S-MLA3FP is engineered and tested to military environmental and EMC standards to support command centers and mission-critical control rooms. Designed for rack integration (8U), it combines a 21.5-inch Full HD projected capacitive touchscreen with MIL-grade connectors and fanless operation for reliable field performance.

Command center focused design
Ergonomic layout and 8U flush rack mechanical design enable seamless installation into command consoles and control-room furniture. Front-access OSD buttons and a light sensor simplify operator workflows and visual comfort in varying lighting conditions.

Defense-grade connectors
The system provides a MIL-DTL-38999 type I power input connector; selected configurations offer MIL-DTL-38999 type III I/O connectors for high-performance cable-to-panel applications—ensuring compatibility with existing defense and ATC systems.

Touch experience and OSD controls
21.5-inch projected capacitive multi-touch display with physical OSD keys on the front panel enables quick adjustments (power, brightness down/up, night/day, auto/menu). Built-in ambient light sensor supports automatic brightness control.

Key features

• Processor: Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz) (default); optional Intel Core i5-1145G7
• Anti-corrosion metal housing · Fanless design
• Projected capacitive multi-touch (PCAP); optional PCAP with ITO film
• Compliance: MIL-STD-810G / MIL-STD-461E/F (with MIL-STD-461G compliance options)
• Flush rack / rack mount mechanical design (8U)
• Front OSD control buttons and built-in light sensor
• Power input: AC 110–240 V (default); isolation DC 9–36 V (optional)
• Security: TPM 2.0

Certifications

• MIL-STD-461F
• MIL-STD-810G
• FCC
• CE

Technical specifications

• Display: 21.5 inches, 1920 x 1080, 250 nits, contrast 3000:1, viewing angles 89/89/89/89, active area 476.64 x 268.11 mm
• Touch / Glass: Projected Capacitive Multi Touch (default); PCAP with ITO Film (optional)
• Processor options: Intel Core i5-1135G7 (2.4 GHz up to 4.2 GHz) default; Intel Core i5-1145G7 optional
• Memory: 4 GB default; optional 8 / 16 / 32 GB
• Storage: 128 GB default; up to 2 TB
• Ethernet: 2 x Intel® Ethernet Controller (2 x RJ-45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise SAC (64-bit); Windows 10 IoT Enterprise (64-bit); Linux Ubuntu 22.04
• Operating humidity: 10% to 95% RH
• Operating temperature: 0 ~ 50 °C; Storage temperature: -10 ~ 60 °C
• Vibration / Drop: USA MIL-STD-810H Method 514.8 / 516.8; NATO STANAG 4370 / AECTP400 options
• TEMPEST (optional): NSA NSTISSAM TEMPEST/1-92; NATO SDIP-27
• Compliance details: MIL-STD-461G (CE101, CE102, RE101, RE102, CS118 default; other subtests optional); NATO STANAG 4370/AECTP-501 options
• Accessories: 1 x Manual (hardcopy), 1 x Driver CD, 1 x Power cord (MIL-DTL-38999/1)
• Mechanical: 580 x 384 x 71 mm; Rack mount default, VESA optional; Metal housing with aluminum bezel
• Cooling: Fanless
• IO: 2 x USB 3.2 Gen 1; 1 x RS232 (default) / 422 / 485; 2 x RJ-45 LAN; 1 x HDMI (optional)
• Power rating: AC 100–240 V ±10% (default); DC 9–36 V ±10% (optional)
• Control buttons: 6-key OSD pad — Power / Brightness DOWN, Brightness UP / Night, Day / Exit, Auto / Menu
