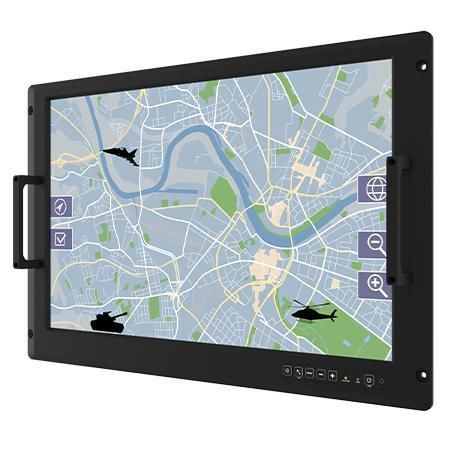

TFT LCD panel PC W24IT3S-RKS1ML

widescreen5-wire resistive touch screentouch screen

Overview
Winmate W24IT3S-RKS1ML is a 24-inch Defense Console Rack Panel PC powered by Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz). It is engineered for defence operations and mission-critical mobility with a fanless, anti-corrosion metal enclosure, flush rack (9U) mechanical design and defence-grade connectors. Default power input is AC 110–240 V; isolation DC 9–36 V optional. The product meets relevant MIL‑STD environmental and EMC requirements for integration into command and control systems.

Key features

• 24" 1920 x 1200 high-resolution TFT LCD
• Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz) (default), higher CPU options available
• Fanless design and anti‑corrosion metal housing
• Compliant with MIL‑STD‑810 and MIL‑STD‑461 series standards
• Flush rack / rack mount mechanical design (9U)
• On‑screen display (OSD) with 6-key control pad
• AC 110–240 V input (default); isolation DC 9–36 V optional
• Built-in ambient light sensor for automatic brightness control
• Defence‑grade power connector MIL‑DTL‑38999/1

Certifications

• CE
• FCC
• MIL‑STD‑810G / MIL‑STD‑810H (environmental, vibration and drop test variants)
• MIL‑STD‑461E / MIL‑STD‑461F / MIL‑STD‑461G (EMC compliance variants)

Design highlights
Reliable computing tailored for defence and harsh environments. Ergonomic command‑center design supports integration into control rooms and field command units. Defence‑grade MIL‑DTL‑38999 connectors (Type I standard, Type III optional) enable cable‑to‑panel compatibility for mission‑critical systems. Front panel provides touchscreen operation plus physical OSD keys for quick access. Built‑in light sensor enables automatic brightness adjustment to ambient conditions.

Technical specifications

• Model: W24IT3S-RKS1ML
• Display size: 24.0 inches
• Resolution: 1920 x 1200
• Panel brightness: 300 nits
• Contrast ratio: 1000:1
• Viewing angles: 89° / 89° / 89° / 89°
• Active area: 518.4 x 324.0 mm
• Touch / glass: AR protection glass (default); optional 5‑wire resistive; 5‑wire resistive with EMI mesh filter; EMI glass
• Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz) (default); Intel® Core™ i5-1145G7 optional
• Memory: 4 GB (default); optional 8 GB / 16 GB / 32 GB
• Storage: 128 GB up to 2 TB
• Ethernet: 2 x Intel® Ethernet controllers (2 x RJ45)
• Security: TPM 2.0
• Operating system options: Windows 11 IoT Enterprise SAC (64-bit); Windows 10 IoT Enterprise (64-bit); Linux Ubuntu 22.04 (optional)
• Operating humidity: 10% to 95% RH
• Operating temperature: 0 ~ 50°C
• Storage temperature: -10 ~ 60°C
• Vibration & shock: MIL‑STD‑810H Method 514.8 (vibration) and Method 516.8 (drop) variants
• TEMPEST options: NSA NSTISSAM TEMPEST/1‑92 (optional); NATO SDIP‑27 (optional)
• MIL‑STD‑461 compliance: CE101, CE102, RE101, RE102, CS118 default; additional CS/RS items optional
• Certifications: CE, FCC
• Dimensions: 609.5 x 399.3 x 76.2 mm
• Mounting: Rack mount (default); panel mount (optional); VESA mount (optional)
• Enclosure: Metal housing with aluminum bezel; anti‑corrosion treatment
• Cooling: Fanless design
• IO ports: 2 x USB 3.0; 1 x RS232/422/485 (default RS232) with optional extra RS232; 2 x RJ45 LAN; 1 x HDMI (optional)
• Accessories: User manual (hardcopy); CD-ROM with driver utility; power cord MIL‑DTL‑38999/1
• Power rating: AC 100~240 V universal ±10% (default); DC 9~36 V ±10% (optional)
• Control buttons: 6‑key OSD pad: Power / Brightness DOWN; Brightness UP / Night; Day / Exit; Auto / Menu
