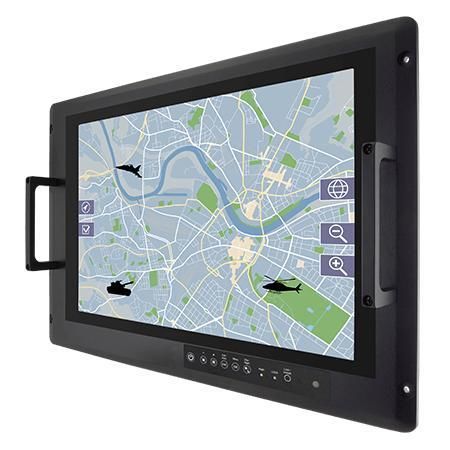

Panel PC with touch screen W24IT3S-MLA2FP

PCAP touchscreenmultitouch screen24"

Product
Winmate W24IT3S-MLA2FP is a 24-inch rackmount Defence Console Panel PC designed for command centres and mission-critical defence applications. Systems are built to meet MIL-STD environmental and EMC requirements while offering long lifecycle availability and front-panel touch/OSD controls for rapid interaction.

Key Features

• Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz) default CPU; optional i5-1145G7
• 24-inch 1920 x 1080 display with projected capacitive multi-touch (PCAP) touch screen (default)
• Fanless design and anti-corrosion metal housing with aluminum bezel
• Flush rack / 8U rackmount mechanical design; VESA mount as default
• Built-in ambient light sensor for automatic brightness control; 6-key OSD control pad
• AC 100–240 V input (default); optional isolated DC 9–36 V input
• Security: TPM 2.0; I/O: 2 x USB 3.2 Gen1, 1 x RS232 (std) / RS422/485, 2 x RJ-45, optional HDMI

Certifications

• MIL-STD-810 series (environmental)
• MIL-STD-461 series (EMC/EMI)
• CE
• FCC

Overview
Systems are manufactured and in-house tested to MIL-STD-810 and MIL-STD-461 requirements to ensure operation under shock, vibration, humidity and other adverse conditions. The product supports defence-grade connectors (e.g., MIL-DTL-38999 type I standard; type III for selected models) and front-panel touch plus OSD controls for fast operation in command consoles.

Connectors & Mechanical Highlights

• MIL-DTL-38999 type I power connector (standard); type III I/O available on selected configurations
• Metal enclosure with anti-corrosion treatment and aluminum bezel
• Flush/rackmount 8U form factor; VESA mount default, rack kit optional
• Dimensions: 635.2 x 430.9 x 66 mm

Accessories (included)

• 1 x Manual (hardcopy)
• 1 x Driver CD
• 1 x Power cord (MIL-DTL-38999/1)

Notes / Applications
Intended for integration into defence, air traffic control and other mission-critical systems where MIL-STD compliance, EMC performance and standardised defence connectors are required. Custom CPU, memory, storage and OS configurations available to meet deployment needs.

Technical characteristics / specifications

• Display: 24.0 inches, 1920 x 1080, 250 nits, 3000:1 contrast, active area 527.04 x 296.46 mm
• Touch/Glass: Projected Capacitive Multi Touch (PCAP) default; PCAP with ITO film optional
• Processor: Intel Core i5-1135G7 (default), Intel Core i5-1145G7 optional
• Memory: 4 GB default; options: 8/16/32 GB
• Storage: 128 GB up to 2 TB
• Ethernet: 2 x Intel® Ethernet Controller; LAN: 2 x RJ-45
• Operating temperature: 0 ~ 50 °C; Storage temperature: -10 ~ 60 °C; Operating humidity: 10%–95% RH
• Vibration/Drop: MIL-STD-810H (selected methods) and NATO STANAG options available
• Compliance: MIL-STD-461G (CE/RE/CS tests default); TEMPEST options available
• Power: AC 100–240 V (default); DC 9–36 V optional
