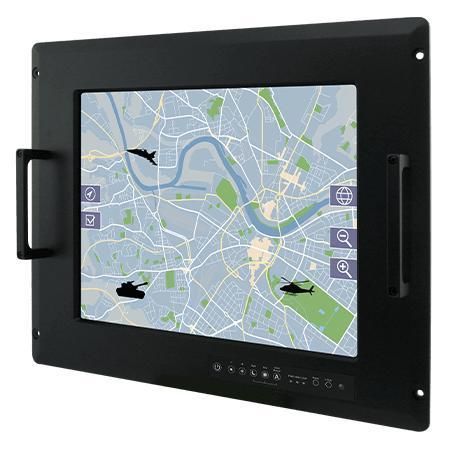

TFT LCD panel PC R17IT3S-MLA1-89

5-wire resistive touch screentouch screen17"

Product Overview
Defence console rack panel PC R17IT3S-MLA1-89 designed and tested to MIL‑STD environmental and MIL‑STD EMC standards for reliable operation in harsh defence command-center environments. Ergonomic console layout with flush rack-mount mechanical design (8U) and anti-corrosion metal housing for long-term deployment.

Key Features

• 17-inch SXGA TFT LCD (1280 x 1024), defence console rack panel
• Intel® Core i7-1165G7 2.8 GHz (up to 4.7 GHz)
• Anti-corrosion metal housing, fanless design
• Compliant with MIL‑STD‑810G and MIL‑STD‑461G
• Flush rack / rack-mount mechanical design (8U)
• 6-key OSD control pad and convenient on-screen display controls
• AC 100–240 V power input (default); isolated DC 9–36 V input (optional)
• Built-in ambient light sensor for automatic brightness control
• Defence-grade power & signal connectors (MIL‑DTL‑38999 type I standard; type III optional)

Certifications

• MIL‑STD‑810G
• MIL‑STD‑461G
• FCC
• CE

Additional Product Notes
Standard power input uses MIL‑DTL‑38999 type I connector; selected models offer MIL‑DTL‑38999 type III connectors for panel I/O in mission-critical wiring. Front-panel tactile OSD buttons complement the touchscreen for quick local control. Automatic brightness adjustment via built-in light sensor supports varying illumination conditions.

Technical specifications

• Display: 17.0 inch SXGA (1280 x 1024); brightness 350 nits; contrast ratio 1000:1; view angles 85/85/80/80; active area 337.920 x 270.336 mm
• Touch / Glass: AR protection glass (default); optional 5-wire resistive touch; 5-wire resistive with EMI mesh filter; EMI glass
• Processor: Intel® Core i7-1165G7 2.8 GHz (up to 4.7 GHz)
• Memory: 4 GB (default); optional 8 GB / 16 GB / 32 GB
• Storage: 1 x M.2 M-Key 2280 NVMe SSD 128 GB (default); optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB
• Ethernet: 2 x 2.5 Giga LAN (RJ45)
• Operating System: Windows 11 IoT Enterprise 64-bit (default); optional Windows 11 Pro 64-bit; Windows 10 IoT Enterprise 64-bit. Note: Wake on touch supported only on Windows 11
• Environment: Operating humidity 10%–95% RH; operating temperature -20 ~ 60 °C; storage temperature -30 ~ 70 °C
• Vibration / Drop: MIL‑STD‑810H vibration Method 514.8 Procedure I; drop Method 516.8 (USA); optional NATO STANAG/AECTP standards
• TEMPEST (optional): NSA NSTISSAM TEMPEST/1-92; NATO SDIP-27
• Compliance (MIL‑STD‑461G): USA default CE101, CE102, RE101, RE102, CS118; optional CS101/CS114/CS115/CS116/RS101/RS103; NATO STANAG 4370/AECTP-501 options as specified
• Certification: CE, FCC
• IO Ports: 1 x USB 2.0 A Type (MIL‑DTL‑38999/3); 2 x RS-232 (MIL‑DTL‑38999/3); 1 x LAN (MIL‑DTL‑38999/3)
• Mechanical: Dimensions 482 x 354 x 80 mm; mounting VESA (default) or rack mount (optional); metal enclosure with aluminum bezel; anti-corrosion housing
• Cooling: Fanless design
• Accessories (default): 1 x manual (hardcopy); 1 x driver CD; 1 x power cord (MIL‑DTL‑38999/1)
• Power: AC 100–240 V ±10% (default); DC 9–36 V ±10% (optional)
• Control: 6-key OSD control pad (Power / Brightness DOWN, Brightness UP / Night, Day / Exit, Auto / Menu)
