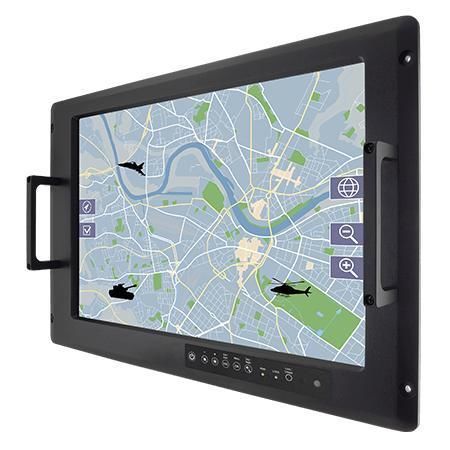

TFT LCD panel PC W24IB3S-RKS1ML

5-wire resistive touch screen24"Intel® Celeron N2930

Overview
Winmate W24IB3S-RKS1ML is a 24-inch Defence Console Rack Panel PC based on the Intel Celeron N2930 platform, engineered for mission-critical command and control environments. It combines a high-resolution display, fanless thermal design and MIL‑STD environmental and EMC compliance for reliable operation in harsh and mobile defence applications.

Key Features

• 24-inch TFT LCD, 1920 x 1200 resolution
• Intel Celeron N2930 (up to 2.16 GHz)
• Anti-corrosion metal housing and fanless cooling
• Built to MIL‑STD‑810G/H and MIL‑STD‑461F/G requirements
• Flush rack / rack-mount mechanical design (9U, 8U options)
• Front physical OSD controls (6-key) and built-in ambient light sensor
• AC 100~240 V standard input; optional isolated DC 9~36 V
• Defence-grade power connector (MIL-DTL-38999/1) and optional MIL‑DTL‑38999 I/O

Certifications

• MIL‑STD‑461F / MIL‑STD‑461G (EMC)
• MIL‑STD‑810G / MIL‑STD‑810H (environmental)
• CE, FCC

Product highlights and design details
Designed for defence command centers and field command vehicles, the W24IB3S-RKS1ML supports rack integration and console ergonomics. The rugged metal enclosure features anti-corrosion treatment and a fanless architecture to reduce maintenance and increase reliability. Defence-grade connectors provide compatibility with existing military cabling and high-reliability I/O configurations.

Touch and user controls are optimized for rapid field operation: optional resistive touch and AR/EMI glass choices, plus a 6-key OSD pad for essential on-screen adjustments. The ambient light sensor enables automatic brightness management to maintain readability under changing lighting conditions.

Usage scenarios
Suitable for mission-critical systems including defence command centers, field command vehicles, naval bridge consoles, secure control rooms, and other industrial or energy sector installations that require MIL‑STD compliance and rugged rack-mountable computing.

Technical specifications

• Display: 24.0 inches, 1920 x 1200, 300 nits, 1000:1 contrast, viewing angles 89/89/89/89, active area 518.4 x 324.0 mm
• Touch / Glass: AR protection glass (default); optional 5-wire resistive touch; 5-wire resistive with EMI mesh; EMI glass
• Processor: Intel Celeron N2930 1.83 GHz (up to 2.16 GHz)
• Memory: 1 x SO-DIMM DDR3L 1600 MHz, 4 GB default; 8 GB optional
• Storage: 1 x mSATA SSD 128 GB default; 256 GB / 512 GB optional
• Ethernet: 2 x Intel Ethernet Controller (2 x RJ45)
• USB: 1 x USB 2.0, 1 x USB 3.0
• Serial: 1 x RS232 (default) / 422 / 485
• Video output: 1 x HDMI (optional)
• OS: optional Windows 10 IoT Enterprise (64-bit) or Linux Ubuntu 20.04
• WLAN/BT: optional support
• Power: AC 100~240 V universal ±10% default; optional isolated DC 9~36 V ±10%
• Power connector: MIL-DTL-38999/1 (included)
• Dimensions: 609.5 x 399.3 x 76.2 mm
• Mounting: VESA mount default; rack mount optional (9U/8U mechanical options)
• Enclosure: metal housing with aluminum bezel; anti-corrosion finish
• Cooling: fanless design
• Operating humidity: 10% to 95% RH
• Operating temperature: 0 ~ 50°C; Storage temperature: -10 ~ 60°C
• Shock & Vibration: USA MIL‑STD‑810H methods for shock (516.8) and vibration (514.8); NATO STANAG/AECTP options available
• TEMPEST/NATO options: NSA NSTISSAM TEMPEST/1-92, NATO SDIP-27 optional
• MIL‑STD‑461G compliance: CE101, CE102, RE101, RE102, CS118 default; additional CS/RS tests optional
• Accessories: user manual (hardcopy), CD-ROM with driver utilities, power cord (MIL-DTL-38999/1)
