TFT LCD panel PC W24IK3S-RKS1ML

5-wire resistive touch screentouch screen24"

Overview

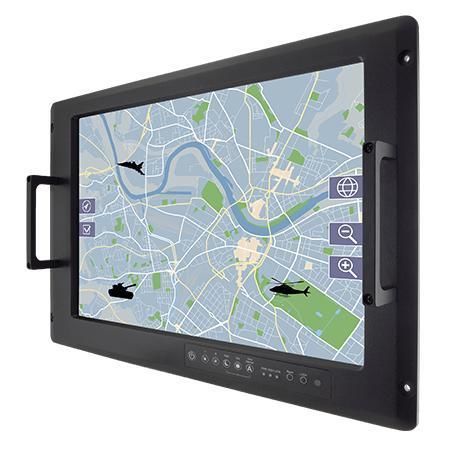

Winmate W24IK3S-RKS1ML is a 24-inch defence console rack panel PC built for mission-critical and harsh-environment applications. It pairs a 1920 x 1200 high-resolution TFT display with an anti‑corrosion metal housing, fanless cooling and defence-grade connectors to meet long lifecycle requirements for OEMs, system integrators and defence integrators.

Key features

• 24" 1920 x 1200 high-resolution TFT LCD, 300 nits
• Intel® Core™ i5 platform (i5-7200U noted; specs may reference i5-7300U)
• Anti-corrosion metal housing with aluminum bezel and fanless design
• Compliant with MIL-STD-810G/H (environment) and MIL-STD-461E/F/G (EMC)
• Flush rack / rack-mount mechanical design (8U/9U references)
• Defence-grade power connector MIL-DTL-38999 type I (type III optional) for cable-to-panel I/O
• Built-in ambient light sensor for automatic brightness control; 8-key OSD front controls
• AC 100~240V default input; optional isolated DC 9~36V input

Product details
This rack panel PC is designed for command centres, ground control stations, air traffic control and other mission-critical deployments. Front-panel OSD with physical keys provides quick access to power, brightness, night/day modes, auto/manual, reset and lock functions. Optical bonding and optional EMI glass/touch options improve visibility and EMI immunity. Multiple mounting options (rack, panel, VESA) and MIL-DTL-38999 connector compatibility enable integration into defence systems.

Certifications

• MIL-STD-810G/H (environmental tests: vibration, humidity, transit drop)
• MIL-STD-461E/F/G (EMC: RE/CE/CS/RS series)
• CE, FCC

Technical specifications

• Model: W24IK3S-RKS1ML
• Brand: Winmate
• Display: 24.0" 1920 x 1200, 300 nits, 1000:1 contrast, 89/89/89/89 viewing angles
• Active area: 518.4 x 324.0 mm
• Touch/Glass: AR Protection Glass (standard); optional 5‑wire resistive, 5‑wire resistive + EMI mesh, EMI glass
• CPU: Intel Core i5-7200U (header) / Intel Core i5-7300U (spec section, up to 3.5 GHz)
• Memory: 1 x SO‑DIMM DDR4 2133 MHz 4GB default; optional 8GB, 16GB
• Storage: 1 x M.2 2242 SSD 128GB default; optional 256GB, 512GB
• LAN: 2 x RJ45 (Intel Ethernet controllers)
• USB: 2 x USB 3.0
• Serial: 1 x RS232/422/485 (default RS232); optional RS232
• Video: 1 x HDMI (optional)
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) / Linux Ubuntu 20.04 (optional)
• Operating humidity: 10% to 95% RH; Operating temp: 0 ~ 50°C; Storage temp: -10 ~ 60°C
• Dimensions: 609.5 x 399.3 x 76.2 mm; Mounting: Rack / Panel / VESA
• Power: AC 100~240V (default); DC 9~36V isolated optional
• Accessories: User manual (hardcopy), CD-ROM with driver utility, power cord MIL-DTL-38999/1
