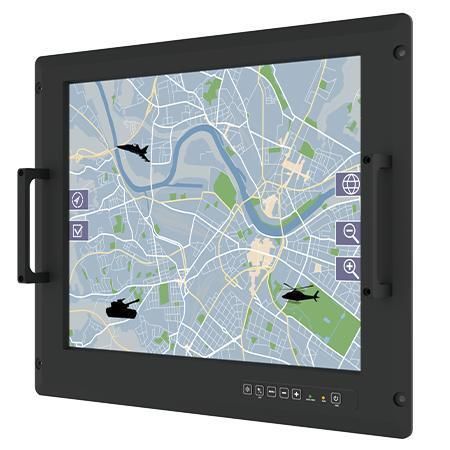

TFT LCD panel PC R19IT3S-MLA3-89

5-wire resistive touch screentouch screen19"

Overview
The R19IT3S-MLA3-89 is a 19-inch Defence Console Rack Panel PC by Winmate, powered by an Intel® Core™ i7-1165G7 processor. It features a corrosion-resistant metal enclosure with aluminum bezel, fanless cooling, built-in ambient light sensor for auto-brightness, and defence-grade MIL‑DTL‑38999 power and signal connectors. The unit is designed and tested to MIL‑STD environmental and EMC standards for operation in harsh defence environments.

Key Features

• 19-inch SXGA TFT LCD (1280 x 1024)
• Intel® Core™ i7-1165G7 2.8GHz (up to 4.7GHz)
• Corrosion-resistant metal housing / Fanless design
• Compliant with MIL‑STD‑810G environmental tests
• Flush rack / rack-mount mechanical design (9U reference)
• On-screen display (OSD) controls and 6-key front OSD pad
• AC 100~240 V power input (default); isolation DC 9~36 V optional
• Built-in ambient light sensor for automatic brightness control
• Defence-grade connectors: MIL‑DTL‑38999 type I (power) and type III (I/O) options

Certifications

• MIL‑STD‑810G
• MIL‑STD‑461G
• FCC
• CE

Product details and design highlights

• Reliable computing tailored for defence: Built and tested to MIL‑STD‑810G environmental and MIL‑STD‑461F EMC standards with internal reliability verification for harsh environments.
• Command-center oriented design: Ergonomic console layout and rack-mount form factor to support command center and control room operations (8U/9U variants referenced).
• Defence-grade connectivity: Standard MIL‑DTL‑38999 type I power connector; selected models support MIL‑DTL‑38999 type III I/O for cable-to-panel compatibility with existing defence systems.
• Touch and OSD controls: Front-panel touchscreen options and physical OSD buttons for immediate control.
• Adaptive display: Ambient light sensor enables automatic brightness adjustment to environmental lighting.

Display

• Size: 19.0 inches
• Resolution: 1280 x 1024 (SXGA)
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• View Angles: 85/85/80/80
• Active Area: 376.32 x 301.06 mm
• Touch / Glass options: AR protection glass (default); 5-wire resistive touch (optional); 5-wire resistive with EMI mesh filter (optional); EMI glass (optional)

System Specification

• Processor: Intel® Core™ i7-1165G7 2.8GHz (up to 4.7GHz)
• Memory: 4GB (default); options 8GB / 16GB / 32GB
• Storage: 1 x M.2 M-Key 2280 NVMe SSD, 128GB (default); optional 256GB / 512GB / 1TB / 2TB / 4TB
• Ethernet controller: 2 x 2.5 Giga LAN RJ45
• Operating System: Windows 11 IoT Enterprise (64-bit) default; optional Windows 11 Pro or Windows 10 IoT Enterprise. Note: Wake on touch supported on Windows 11 only.

Environment

• Operating Humidity: 10% to 95% RH
• Operating Temperature: -20 ~ 60 °C
• Storage Temperature: -30 ~ 70 °C
• Vibration: USA MIL‑STD‑810H Method 514.8 – Procedure I; NATO STANAG 4370/AECTP400 Method AECTP 401 (optional)
• Drop: USA MIL‑STD‑810H Method 516.8; NATO STANAG 4370/AECTP400 Method AECTP 404 (optional)
• TEMPEST: NSA NSTISSAM TEMPEST/1‑92 (optional); NATO SDIP‑27 (optional)

Compliance

• MIL‑STD‑461G: CE101, CE102, RE101, RE102, CS118 (default); additional CS/RS tests optional
• NATO STANAG 4370/AECTP‑501 options: NCE/NRE/NCS/NRS items as listed per configuration
• MIL‑STD‑810H compliance for vibration, humidity, transit drop (USA methods default; NATO options available)

Certifications (commercial)

• CE
• FCC

I/O Ports

• USB: 1 x USB 2.0 A Type (MIL‑DTL‑38999/3)
• Serial: 2 x RS‑232 (MIL‑DTL‑38999/3)
• LAN: 1 x LAN (MIL‑DTL‑38999/3)

Mechanical

• Dimensions: 482.6 x 399.3 x 81.4 mm
• Mounting: VESA mount (default); rack mount optional
• Enclosure: Metal housing with aluminum bezel; anti-corrosion finish
• Cooling: Fanless design

Accessory

• Included: 1 x manual (hardcopy), 1 x driver CD, 1 x power cord (MIL‑DTL‑38999/1)

Power

• Power Rating: AC 100~240V universal ±10% (default); DC 9~36V ±10% (optional)

Control

• Front controls: 6-key OSD control pad — Power/Brightness DOWN, Brightness UP/Night, Day/Exit, Auto/Menu

Technical specifications

• Model: R19IT3S-MLA3-89
• Brand: Winmate
• Display: 19" SXGA (1280 x 1024), 350 nits
• CPU: Intel® Core™ i7-1165G7 (2.8GHz, up to 4.7GHz)
• Memory: 4GB default (up to 32GB)
• Storage: M.2 NVMe SSD up to 4TB (128GB default)
• LAN: 2 x 2.5 Giga LAN controllers
• Rugged standards: MIL‑STD‑810G/H, MIL‑STD‑461G and NATO STANAG options
• Operating range: -20 ~ 60 °C; 10%–95% RH
• Dimensions & mounting: 482.6 x 399.3 x 81.4 mm; VESA default, rack optional
• Enclosure: Metal housing with aluminum bezel, anti-corrosion
• Power input: AC 100~240V default; DC 9~36V optional
• Touch & glass options: AR protection glass default; multiple optional touch/EMI variants
• Cooling: Fanless
• Connectors: MIL‑DTL‑38999 series (type I and optional type III)
• Certifications: CE, FCC, MIL‑STD series; optional TEMPEST/NATO certifications
