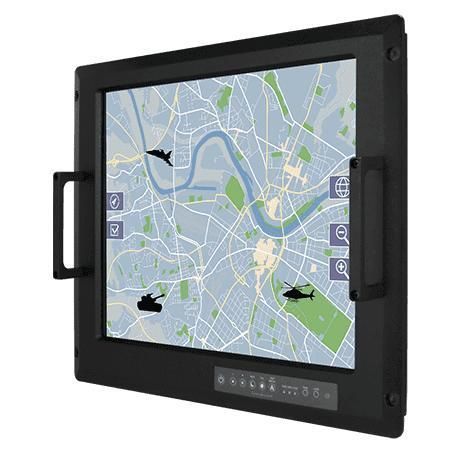

TFT LCD panel PC R19IK3S-RKA3ML

5-wire resistive touch screentouch screen19"

Overview
The Winmate R19IK3S-RKA3ML is a 19-inch SXGA defence console rack Panel PC engineered for command centers and control rooms. Built to meet MIL-STD-810G and MIL-STD-461E/F environmental and EMC requirements, it is validated by in-house reliability tests for operation in harsh conditions. The unit features flush rack mounting, defence-grade connectors and automatic brightness control via a built-in light sensor.

Key Features

• 19-inch SXGA TFT LCD (1280 x 1024)
• Intel® Core™ i5 processor family (i5-7200U / i5-7300U variants)
• Anti-corrosion metal housing with aluminum bezel; fanless design
• MIL-STD-810G/F and MIL-STD-461E/F compliance
• Flush Rack / Rack Mount mechanical design (9U)
• Front touchscreen with 8-key OSD control pad
• AC 100~240 V input (default); isolated DC 9~36 V optional
• Built-in ambient light sensor for auto brightness
• Defence-grade power connector (MIL-DTL-38999/1)

Certifications

• CE
• FCC
• MIL-STD-810G (selected methods)
• MIL-STD-461E/F (EMC test items)

Design & Application
Designed for ergonomic integration into command consoles and control-room racks, the R19IK3S-RKA3ML supports multiple mounting methods (Rack Mount / Panel Mount / VESA). Defence-grade circular connectors enable compatibility with existing military cabling. The front panel combines touchscreen input and physical OSD keys for quick control of power, brightness, day/night modes, auto/manual and lock/reset functions.

Technical Specifications

• Display Size: 19.0 inches; Resolution: 1280 x 1024 (SXGA)
• Panel Brightness: 350 nits; Contrast Ratio: 1000:1; View Angles: 85/85/80/80
• Touch/Glass: AR Protection Glass (default); EMI ITO Glass, 5-wire resistive touch, EMI mesh options
• Processor: Intel Core i5-7300U 2.6 GHz (up to 3.5 GHz) — page references i5-7200U variant
• Memory: 1 x SO-DIMM DDR4 2133 MHz — 4GB default; 8GB / 16GB options
• Storage: 1 x M.2 2242 SSD — 128GB default; 256GB / 512GB options
• Ethernet: 2 x Intel® Ethernet Controller (2 x RJ45)
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise 64-bit (optional); Linux Ubuntu 20.04 (optional)
• WLAN / Bluetooth: optional
• Operating Humidity: 10% to 95% RH; Operating Temp: -20°C to 60°C; Storage Temp: -30°C to 70°C
• Compliance: MIL-STD 461E/F/G and MIL-STD 810G/H (listed methods)
• Dimensions: 482.6 x 399.3 x 71.4 mm
• Mounting: Rack Mount / Panel Mount / VESA Mount
• IO: 2 x USB 3.0; 1 x RS232/422/485 (default RS232); 2 x RJ45 LAN; optional HDMI
• Power: AC 100~240 V (default); DC 9~36 V optional
• Accessories: User manual (hardcopy), CD-ROM with drivers, power cord MIL-DTL-38999/1
