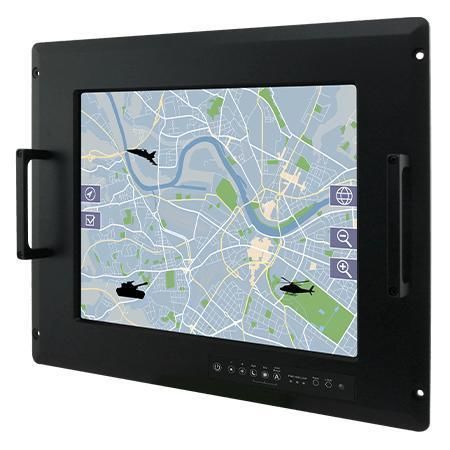

TFT LCD panel PC R17IT3S-RKA1ML

touch screen17"Intel® Core™ i5-1135G7

Overview
The R17IT3S-RKA1ML is a 17in SXGA defence console rack panel PC engineered for command centers and mission-critical environments. It combines MIL-grade mechanical and EMC compliance with a fanless, anti-corrosion enclosure and defence‑grade power connectors to ensure reliable operation under harsh conditions.

Key Features

• 17” SXGA TFT LCD with AR protection glass (default); optional touch variants and EMI options
• Intel® Core™ i5-1135G7 (2.4 GHz, turbo up to 4.2 GHz); optional i5-1145G7
• Fanless design and anti-corrosion metal housing
• Designed for flush rack / 8U rack-mount console installations
• Built-in ambient light sensor for auto-brightness
• Front OSD controls (6-key) and user-friendly touchscreen
• Default AC 100–240 V power input; optional isolated DC 9–36 V
• Defence-grade power connector MIL‑DTL‑38999/1; optional MIL‑DTL‑38999 type III I/O

Certifications

• MIL‑STD‑461F / MIL‑STD‑461G (EMC options per configuration)
• MIL‑STD‑810G / MIL‑STD‑810H (environmental tests: vibration, humidity, transit drop)
• CE, FCC

Design & Use
Purpose-built for command centers and control rooms, the unit provides a compact 8U rack form factor for flush installations. The anti-corrosion housing and fanless cooling reduce maintenance and improve longevity in maritime, vehicle or fixed-site defence platforms. Defence‑grade connectors and configurable I/O ensure compatibility with existing systems.

Connectivity & Controls

• 2 x USB 3.0
• Serial: 1 x RS232/422/485 (default RS232) with optional serial configurations
• 2 x RJ45 Ethernet (Intel® controllers)
• Optional HDMI output
• 6-key OSD control pad: Power / Brightness DOWN; Brightness UP / Night; Day / Exit; Auto / Menu

Display & Performance
1280 x 1024 (SXGA) resolution, 350 nits brightness and 1000:1 contrast provide clear visuals for control-room tasks. Configurable memory (4GB default up to 32GB) and storage (128GB up to 2TB) plus TPM 2.0 security and optional Windows or Linux OS choices adapt the system to mission requirements.

Environment & Compliance
Operational range: -20 ~ 60 °C, storage: -30 ~ 70 °C, humidity 10%–95% RH. Optional MIL/NATO vibration and drop tests and TEMPEST/NATO SDIP-27 configurations are available for mission-critical deployments.

Specifications

• Model: R17IT3S-RKA1ML
• Display: 17.0 inches, 1280 x 1024 (SXGA), 350 nits, AR Protection Glass (default)
• Processor: Intel® Core™ i5-1135G7 (2.4GHz up to 4.2GHz) (default); optional i5-1145G7
• Memory: 4GB default; optional 8/16/32GB
• Storage: 128GB, up to 2TB
• Ethernet: 2 x Intel® Ethernet Controller (2 x RJ45)
• IO: 2 x USB 3.0; 1 x RS232/422/485 (default); optional HDMI
• Mounting & Mechanical: 482 x 354 x 80 mm; VESA mount default; panel mount optional; metal housing with aluminum bezel
• Power: AC 100~240V ±10% (default); DC 9~36V ±10% (optional); MIL‑DTL‑38999/1 power cord
• Cooling: Fanless
• Accessories: User manual (hardcopy), CD-ROM with driver utility
