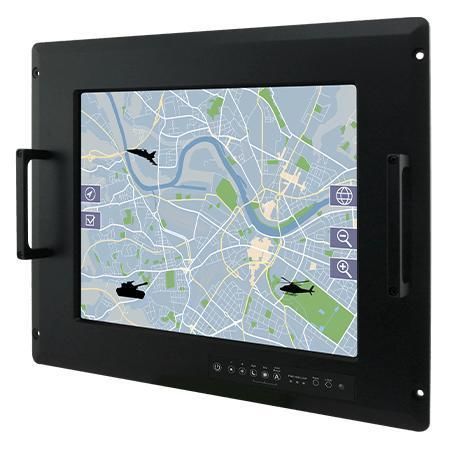

TFT LCD panel PC R17IB3S-RKA1ML

5-wire resistive touch screentouch screen17"

Overview Winmate 17" Defence Console Rack Panel PC R17IB3S-RKA1ML is a 17" rack-mount panel PC designed for defence applications. It integrates an Intel® Celeron® N2930 processor in a fanless, anti-corrosion housing, is compliant with MIL-STD environmental and EMC standards, and provides rack mount (8U) mechanical design, defence-grade connectors, auto-brightness control and convenient on-screen display controls.

Key Features

• 17" SXGA TFT LCD (1280 x 1024), 350 nits
• Intel® Celeron® N2930 (up to 2.16 GHz)
• Anti-corrosion metal housing; fanless cooling
• Flush rack / Rack mount mechanical design (8U)
• Compliant with MIL-STD-810G/H and MIL-STD-461 (EMC)
• Built-in ambient light sensor for auto brightness control
• 6-key front OSD control pad
• AC 100~240 V power input (default); Isolation DC 9~36 V optional
• Defence-grade power connector MIL-DTL-38999/1; MIL-DTL-38999 type III I/O optional

Certifications

• MIL-STD-461F / MIL-STD-461G (EMC)
• MIL-STD-810G / MIL-STD-810H (environmental)
• FCC
• CE

Product Highlights Reliable computing tailored for defence: devices are built and tested to MIL-STD-810G/H environmental and MIL-STD-461F/G EMC standards. The ergonomic command-console form factor improves efficiency for control room personnel and fits standard rack systems. Defence-grade connectors (MIL-DTL-38999 type I; type III I/O optional) ensure compatibility with existing defence cabling and systems. User-friendly touchscreen options plus physical OSD buttons provide fast front-panel control. Built-in ambient light sensor offers auto-brightness control for varying lighting conditions.

Technical specifications

• Display — Size: 17.0 inches; Resolution: 1280 x 1024; Brightness: 350 nits; Contrast: 1000:1; Viewing angles: 85/85/80/80; Active area: 337.920 x 270.336 mm; Touch/Glass: AR Protection Glass (default); optional 5-wire resistive, 5-wire resistive with EMI mesh filter, EMI glass
• System — Processor: Intel Celeron N2930 1.83 GHz (up to 2.16 GHz); Memory: 1 x SO-DIMM DDR3L 1600 MHz, 4GB default (8GB optional); Storage: 1 x mSATA SSD 128GB default (256/512GB optional); Ethernet: 2 x Intel® Ethernet controllers
• OS / Connectivity — Windows 10 IoT Enterprise 64-bit optional; Linux Ubuntu 20.04 optional; WLAN / Bluetooth optional
• Environment — Operating humidity: 10%–95% RH; Operating temp: 0 ~ 50 °C; Storage temp: -10 ~ 60 °C; Shock/Vibration: tested to MIL-STD-810H methods; TEMPEST/NATO options available
• Compliance — MIL-STD-461G (CE101/CE102/RE101/RE102 default; additional tests optional); MIL-STD-810H
• Certifications — CE, FCC
• I/O — USB: 1 x USB 2.0, 1 x USB 3.0; Serial: 1 x RS232 (default) / RS422 / RS485; LAN: 2 x RJ45; Video: HDMI optional
• Mechanical — Dimensions: 482 x 354 x 80 mm; Mounting: VESA (default) / Rack mount (optional 8U); Enclosure: metal housing with aluminum bezel; Cooling: fanless
• Power & Accessories — Power: AC 100~240 V ±10% (default); DC 9~36 V ±10% (optional); Power cord MIL-DTL-38999/1; user manual; CD-ROM with drivers
• Control — 6-key OSD control pad: Power/Brightness DOWN, Brightness UP/Night, Day/Exit, Auto/Menu
