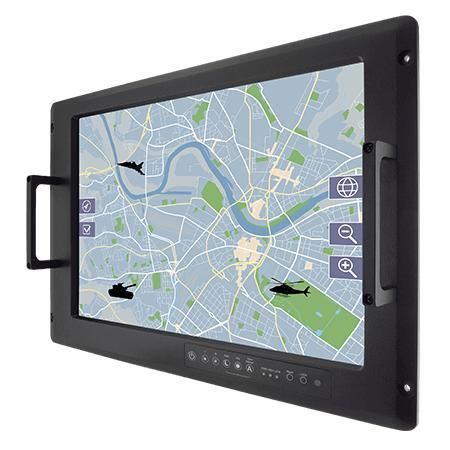

TFT LCD panel PC W24IT3S-MLS1-89

resistive touch screen5-wire resistive touch screentouch screen

Product Overview
Winmate W24IT3S-MLS1-89 is a 24-inch defence console rack panel PC engineered for mission-critical defence and command-center environments. It integrates an Intel® Core™ i7-1165G7 processor, a 24" 1920 x 1200 high-resolution TFT display, MIL-STD ruggedization, anti-corrosion fanless metal housing and optional MIL-DTL-38999 power and signal connectors to ensure compatibility with existing defence systems.

Key Features

• 24" 1920 x 1200 high-resolution TFT LCD
• Intel® Core™ i7-1165G7 2.8 GHz (up to 4.7 GHz)
• AC 100–240 V input (default); optional isolated DC 9–36 V
• Compliant with MIL-STD-810G / 810H and MIL-STD-461G
• Flush rack / rack mount mechanical design (9U)
• On-screen display (OSD) with 6-key control pad
• Anti-corrosion metal housing with aluminum bezel; fanless design
• Built-in ambient light sensor for auto brightness
• Defence-grade MIL-DTL-38999 connector options for power and I/O

Certifications & Compliance

• MIL-STD-810G / MIL-STD-810H (environmental tests: vibration, humidity, transit drop)
• MIL-STD-461G (EMC: CE101, CE102, RE101, RE102, CS118 default; additional tests optional)
• CE, FCC

Designed Use
This rackmount panel PC is intended for defence command centers, field command posts and other mission-critical mobility or fixed installations where ruggedness, long lifecycle availability and interoperability with MIL-grade connectors are required.

Technical specifications

• Display: 24.0"; 1920 x 1200; brightness 300 nits; contrast 1000:1; viewing angles 89/89/89/89; active area 518.4 x 324.0 mm
• Touch / Glass: AR protection glass (default); EMI ITO glass (optional); 5-wire resistive touch (optional); resistive + EMI mesh (optional)
• Processor: Intel® Core™ i7-1165G7 2.8 GHz (up to 4.7 GHz)
• Memory: 4 GB default; optional 8 GB / 16 GB / 32 GB
• Storage: 1 x M.2 M-Key 2280 NVMe SSD; 128 GB default; optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB
• Ethernet: 2 x 2.5 Giga LAN (RJ45) controller; MIL-DTL-38999 LAN connector options
• OS: Windows 11 IoT Enterprise (64-bit) default; optional Windows 11 Pro or Windows 10 IoT Enterprise (64-bit). Note: Wake on touch supported on Windows 11 only
• Environment: Operating humidity 10%–95% RH; operating temperature 0 ~ 50°C; storage temperature -10 ~ 60°C
• Rugged tests: Vibration USA MIL-STD-810H Method 514.8 Procedure I; Drop USA MIL-STD-810H Method 516.8; NATO STANAG / AECTP options available
• TEMPEST / NATO options: NSA NSTISSAM TEMPEST/1-92 (optional); NATO SDIP-27 (optional)
• Compliance: MIL-STD-461G (detailed CE/RE/CS test items with defaults and options)
• IO examples: 1 x USB 2.0 A (MIL-DTL-38999/3), 2 x RS-232 (MIL-DTL-38999/3), 1 x LAN (MIL-DTL-38999/3)
• Mechanical: 609.5 x 399.3 x 76.2 mm
• Mounting: VESA mount (default); rack mount (optional)
• Enclosure & cooling: Metal housing with aluminum bezel; anti-corrosion option; fanless design
• Power: AC 100~240 V universal ±10% (default); DC 9~36 V ±10% (optional)
• Control: 6-key OSD control pad (Power / Brightness Down, Brightness Up / Night, Day / Exit, Auto / Menu)
• Accessories: 1 x manual (hardcopy), 1 x driver CD, 1 x power cord (MIL-DTL-38999/1)
