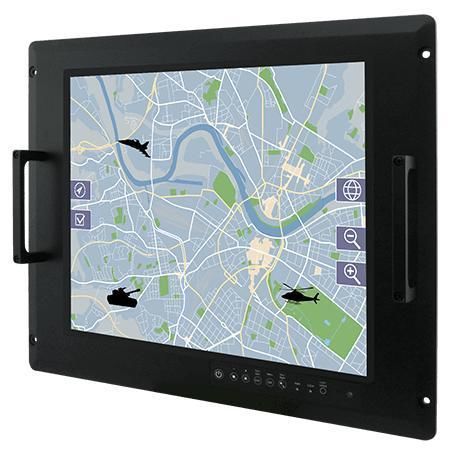

PCAP touchscreen panel PC R17IT3S-MLA1FP

multitouch screen17"Intel® Core™ i5-1135G7

Overview
Winmate R17IT3S-MLA1FP is a 17" defence console rack Panel PC designed and tested to MIL-STD-810G environmental and MIL-STD-461F EMC standards. It features an 8U rack-mount form factor, corrosion-resistant metal housing and a fanless architecture for reliable operation in mission-critical defence environments.

Key Features

• Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz)
• Corrosion-resistant metal housing, fanless design
• Projected capacitive multi-touch (P-CAP) touchscreen (default)
• Compliant with MIL-STD-810G/H and MIL-STD-461E/F/G (depending on configuration)
• Flush rack / rack-mount mechanical design (8U)
• On-screen display (OSD) with 6-key front control pad
• AC 110–240 V power input (default); Isolation DC 9–36 V optional
• Built-in ambient light sensor for automatic brightness control

Certifications

• CE
• FCC
• MIL-STD-810G / MIL-STD-461F (see model configuration for details)

Product Description (detailed)
Designed for command centres and control rooms, the R17IT3S-MLA1FP provides an ergonomic console layout and a rack-mountable 8U mechanical design for seamless integration into defence systems. Defence-grade connectors (MIL-DTL-38999 type I standard; type III available on selected models) support mission-critical power and I/O requirements. The projected capacitive touchscreen paired with physical OSD buttons enables fast access to brightness/day/night/auto modes and menu navigation. The integrated ambient light sensor automatically adjusts display brightness to surrounding conditions.

Technical specifications

• Model: R17IT3S-MLA1FP
• Display: 17.0 inches; Resolution: 1280 x 1024; Brightness: 350 nits; Contrast ratio: 1000:1; Viewing angles: 85/85/80/80; Active area: 337.920 x 270.336 mm
• Touch / Glass: Projected Capacitive Multi-Touch (default); PCAP with ITO film (optional)
• Processor: Intel® Core™ i5-1135G7 2.4GHz (up to 4.2GHz) (default); Intel® Core™ i5-1145G7 optional
• Memory: 4GB (default); options: 8GB, 16GB, 32GB
• Storage: 128GB (default), up to 2TB
• Ethernet: 2 x Intel® Ethernet Controller (dual LAN)
• Security: TPM 2.0
• Operating systems (optional): Windows 11 IoT Enterprise SAC (64-bit); Windows 10 IoT Enterprise (64-bit); Linux Ubuntu 22.04
• Operating humidity: 10% to 95% RH
• Operating temperature: -20 ~ 60°C; Storage temperature: -30 ~ 70°C
• Vibration/Drop: MIL-STD-810H and NATO STANAG options available per configuration
• MIL-STD-461G compliance options: CE101, CE102, RE101, RE102, CS118 (default); additional CS/RS options configurable
• Certifications: CE, FCC
• Accessories: 1 x Manual (Hardcopy); 1 x Driver CD; 1 x Power Cord (MIL-DTL-38999/1)
• Mechanical: Dimensions: 482.6 x 399.3 x 79.6 mm; Enclosure: Metal housing with aluminum bezel; Mounting: VESA (default), Rack mount (optional); Cooling: Fanless design
• I/O: 2 x USB 3.2 Gen 1; 1 x RS-232 (configurable to RS-422/485); 2 x RJ-45; 1 x HDMI (optional)
• Power: AC 100–240 V (default); DC 9–36 V optional (±10%)
• Controls: 6-key OSD control pad (Power / Brightness DOWN; Brightness UP / Night; Day / Exit; Auto / Menu)
