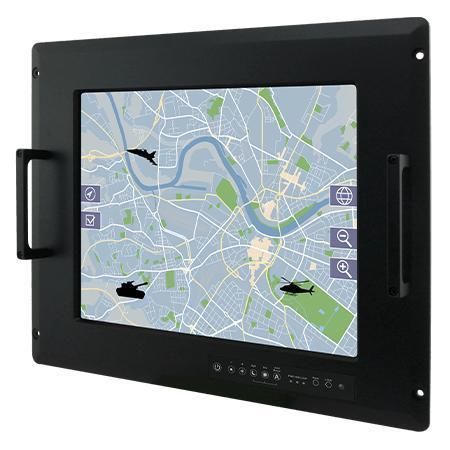

TFT LCD panel PC R17IK3S-RKA1ML

with touch screentouch screen17"

Overview
Winmate R17IK3S-RKA1ML is a 17" SXGA (1280x1024) Defence Console Rack Panel PC engineered for rack-mounted command and control applications. It combines a rugged, anti-corrosion metal enclosure, fanless cooling and extensive I/O to support mission-critical defence environments.

Reliable Computing Tailored for Defence Applications
The platform is built and tested to MIL-STD-810G environmental and MIL-STD-461F EMC standards. In-house reliability tests verify operation under vibration, humidity, transit-drop and EMI conditions common to defence deployments.

Command Center Focused Design
Ergonomic console layout with flush rack / rack mount mechanical design (8U) for streamlined integration into command centers and control rooms. Front-panel touchscreen and physical OSD controls support rapid operator interaction.

Defence-Grade Connectors and Power
Default MIL-DTL-38999 type I power input connector; selected models offer MIL-DTL-38999 type III I/O options. Power options include AC 100–240 V (default) and isolated DC 9–36 V (optional) to fit diverse installations.

Touch Experience and On-Screen Controls
User-friendly touchscreen combined with an 8-key OSD control pad on the front panel for quick access to power, brightness, night/day modes, auto/manual, reset and lock functions.

Auto Brightness Control
Built-in ambient light sensor provides automatic screen brightness adjustment to maintain readability across changing lighting conditions.

Key features

• 17" SXGA TFT LCD (1280 x 1024), 350 nits
• Intel® Core™ i5 platform (configurations reference i5-7200U / i5-7300U)
• Anti-corrosion metal housing, fanless design
• Compliant with MIL-STD-810G/H and MIL-STD-461E/F
• Flush rack / rack mount mechanical design (8U), VESA/Panel mount options
• 2 x USB 3.0, 2 x RJ45 LAN, serial ports, optional HDMI
• TPM 2.0, optional secure OS and wireless modules
• AC 100~240V (default); DC 9~36V isolated (optional)
• Defence-grade power connector MIL-DTL-38999/1

Certifications

• MIL-STD-461F (EMC)
• MIL-STD-810G/H (Environmental)
• CE
• FCC

Product description details
This rack-mount panel PC is intended for command centers, surveillance and other defence installations requiring sustained operation in harsh conditions. It supports multitasking workloads, extensive connectivity for integration into rack systems, and security features to protect sensitive data. Modular options for memory, storage, touch/glass types and wireless communication enable configuration to project-specific requirements.

Technical specifications

• Model: R17IK3S-RKA1ML
• Brand: Winmate
• Display: 17.0" SXGA (1280 x 1024), 350 nits, 1000:1 contrast, view angles 85/85/80/80
• Touch/Glass: AR Protection Glass (default); optional 5-wire resistive, resistive with EMI mesh, EMI Glass
• Processor: Intel Core i5 (references include i5-7200U 2.5 GHz and i5-7300U 2.6 GHz with turbo)
• Memory: 1 x SO-DIMM DDR4 2133 MHz, 4GB default; 8GB / 16GB optional
• Storage: 1 x M.2 2242 SSD 128GB default; 256GB / 512GB optional
• Ethernet: 2 x Intel® Ethernet Controller (2 x RJ45)
• I/O: 2 x USB 3.0; Serial: 1 x RS232/422/485 (default RS232) + optional serial; Video: HDMI (optional)
• Security: TPM 2.0; optional secure OS builds
• Operating: -20°C to 60°C; Storage: -30°C to 70°C; Humidity 10%–95% RH
• Compliance: MIL-STD-461E/F/G (detailed test items), MIL-STD-810G/H (vibration, humidity, transit drop)
• Dimensions: 482 x 354 x 80 mm; Mounting: VESA / Panel Mount
• Enclosure: Metal housing with aluminum bezel; anti-corrosion option
• Cooling: Fanless
• Power: AC 100~240V ±10% default; DC 9~36V ±10% optional (isolated)
• Accessories: User manual (hardcopy), CD-ROM with driver utility, power cord MIL-DTL-38999/1
