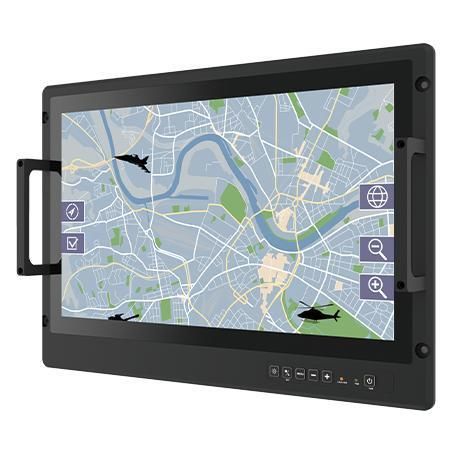

PCAP touchscreen panel PC W18IT3S-MLA3FP

multitouch screentouch screen18.5"

Overview
The Winmate W18IT3S-MLA3FP is an 18.5-inch defence-grade rack panel PC engineered for mission-critical and space-constrained rack environments. It delivers MIL/NATO compliance options, fanless cooling and a flush 8U rack-mount form factor for secure deployment in defence and industrial systems.

Key Features

• Intel® Core™ i5-1135G7 2.4 GHz (turbo up to 4.2 GHz) (default)
• Anti-corrosion metal housing with aluminum bezel; fanless thermal design
• Projected Capacitive Multi-Touch (PCAP) display; optional PCAP with ITO film
• Flush rack / rack mount mechanical design occupying 8U
• On-screen display (OSD) controls with 6-key OSD control pad
• MIL-STD-810G / MIL-STD-461E/F/G compliance; NATO STANAG options
• AC 100–240 V power input (default); optional isolated DC 9–36 V
• Built-in ambient light sensor for automatic brightness control

Certifications

• MIL-STD-461F / MIL-STD-461G (EMC)
• MIL-STD-810G / MIL-STD-810H (environmental, vibration, drop)
• CE
• FCC

Product Highlights

• Sleek flush 8U rack design for efficient use of rack space and secure mounting during transport
• OSD controls enable local configuration without external peripherals
• EMC and environmental qualifications reduce interference and increase system reliability in dense electronic environments

Display

• Size: 18.5 inches
• Touch / Glass: Projected Capacitive Multi-Touch (default); optional PCAP with ITO film
• Resolution: 1920 x 1080 (FHD)
• Brightness: 500 nits
• Contrast Ratio: 1000:1
• Viewing Angles: 89 / 89 / 89 / 89
• Active Area: 408.96 x 230.04 mm

System Specification

• Processor: Intel Core i5-1135G7 (default); optional i5-1145G7
• Memory: 4 GB (default); options 8 GB / 16 GB / 32 GB
• Storage: 128 GB default, expandable up to 2 TB
• Ethernet: 2 x Intel® Ethernet controllers (2 x RJ-45)
• Security: TPM 2.0
• OS Options: Windows 11 IoT Enterprise SAC / Windows 10 IoT Enterprise / Ubuntu 22.04 (optional)

Environment

• Operating Humidity: 10% to 95% RH
• Operating Temperature: -20 °C to 60 °C
• Storage Temperature: -30 °C to 70 °C
• Vibration & Drop: MIL-STD-810H vibration and transit drop methods; NATO STANAG/AECTP options available
• TEMPEST: optional configurations available

Compliance

• MIL-STD-461G: CE101, CE102, RE101, RE102, CS118 (default) with additional optional test items
• NATO STANAG 4370 / AECTP mappings available as options
• MIL-STD-810H environmental test coverage as standard with optional NATO variants

Certification

• CE
• FCC

Accessory

• 1 x Manual (Hardcopy)
• 1 x Driver CD
• 1 x Power Cord (MIL-DTL-38999/1)

Mechanical

• Dimensions: 465 x 327 x 75 mm
• Mounting: VESA (default); rack mount design (8U) for flush installation
• Enclosure: Metal housing with aluminum bezel, anti-corrosion treatment
• Cooling: Fanless design

IO Ports

• USB: 2 x USB 3.2 Gen 1
• Serial: 1 x RS232 (default) / optional RS422 / RS485
• LAN: 2 x RJ-45
• Video: 1 x HDMI 2.0 (optional)

Power

• Power Input: AC 100–240 V (default); optional isolated DC 9–36 V

Control

• 6-Key OSD control pad: Power / Brightness DOWN, Brightness UP / Night, Day / Exit, Auto / Menu

Technical Specifications

• Model: W18IT3S-MLA3FP
• Brand: Winmate
• Display: 18.5" FHD (1920x1080), 500 nits, 1000:1
• Touch: Projected Capacitive Multi-Touch (PCAP) default
• CPU: Intel Core i5-1135G7 (default); optional i5-1145G7
• Memory: 4 GB default; up to 32 GB optional
• Storage: 128 GB up to 2 TB
• Network: 2 x Intel Ethernet
• Security: TPM 2.0
• Operating Temp/Humidity: -20~60 °C; 10%~95% RH
• Mounting: VESA default; rack mount optional (8U)
• Enclosure: Metal housing with aluminum bezel, anti-corrosion
