LCD monitor R12L100-PCM2(HB)

multitouch screenPCAP capacitive touch screenindustrial

Overview

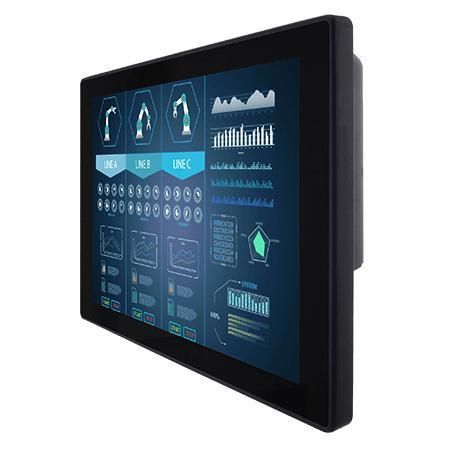

The R12L100-PCM2(HB) is a 12.1-inch industrial chassis LCD display with projected capacitive (P-CAP) multi-touch, designed for industrial visualization, control rooms and equipment monitoring. It combines a rugged metal enclosure, fanless operation and flexible video inputs for embedded and OEM applications.

Key Features

• 12.1-inch display, 1024 x 768 resolution
• Projected capacitive multi-touch (P-CAP)
• VGA (standard); HDMI, DVI optional
• Chassis design with VESA mount
• Front IP65 rating
• Fanless design for continuous operation
• Panel brightness: 500 nits (standard); 1000 nits optional

Certifications

• CE
• FCC

Product Highlights

• Low power consumption and effective heat dissipation suitable for long-term use in production facilities
• Universal VESA mounting for wall and panel installations
• High reliability in industrial environments with MIL-STD shock and vibration qualifications
• Excellent image quality with 16.2M colors and wide viewing angles
• Customization options: product size, logo, panel brightness, glass surface treatment, display ports and power plug

Technical specifications

• Model: R12L100-PCM2(HB)
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Size: 12.1 inches
• Resolution: 1024 x 768
• Panel Brightness: 500 nits (Default); 1000 nits (Optional)
• Contrast Ratio: 1000:1
• Viewing Angles: 89/89/89/89
• Display Color: 16.2M Colors
• Active Area: 245.76 x 184.32 mm
• Operating Humidity: 10% to 90% (non-condensing)
• Operating Temperature: 0 ~ 50 °C
• Storage Temperature: -30 ~ 70 °C
• Shock: MIL-STD-810G Method 516.6
• Vibration: MIL-STD-810G Method 514.6
• IP Rating: Front IP65
• Certification: CE, FCC
• USB Port: 1 x USB for touch (optional)
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line-in (3.5 mm) optional; 2 x speakers optional
• Dimensions (W x H x D): 296.2 x 226.7 x 45.5 mm
• Mounting: VESA mount
• Enclosure: Metal
• Cooling System: Fanless design
• Accessories (typical): VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies)
• Optional accessory: Remote controller (varies)
• Power Input: 12V DC in; 24V DC in (optional)
• Control Buttons: 5 keys: -, +, Power, Esc, Enter
