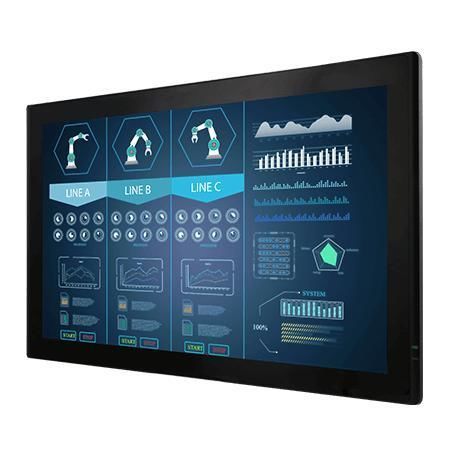

Multi-touch screen monitor W32L100-PTA1-4K

PCAP capacitive touch screenfor displaysfor industrial machines

Product Overview
Winmate W32L100-PTA1-4K is a 32-inch multi-touch chassis display engineered for industrial visualization, control rooms and equipment monitoring. It features a 3840 x 2160 4K panel with projected-capacitive (P-CAP) multi-touch, a fanless and ventless design for reliable long-term operation, front IP65 protection and multiple video inputs (DisplayPort default, HDMI optional). Suitable for OEM integration and mission-critical display applications.

Key Features

• 32” 3840 x 2160 P-CAP multi-touch chassis display
• 5 bottom side keys (-, +, Power, Esc, Enter)
• Fanless and ventless design for easy cleaning
• Supports DisplayPort (DP 1.2) and optional HDMI (1.4 / 2.0)
• Front panel IP65 protection; 2 x speakers

Highlights / Product Details
Low power consumption with effective heat dissipation enables continuous operation in production and industrial facilities. Universal VESA mounting supports wall and desk installation for flexible integration. Rugged enclosure and industrial-grade assembly ensure reliable operation in control rooms and embedded systems. High pixel density and professional calibration deliver consistent image quality. Multiple customization options are available for panel brightness, glass treatment, enclosure and I/O configuration.

Certifications

• CE
• FCC

Technical specifications

• Model: W32L100-PTA1-4K
• Size: 32.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 3840 x 2160
• Panel Brightness: 350 nits
• Contrast Ratio: 1000:1
• Viewing Angles: 89, 89, 89, 89
• Display Color: 1.07B Colors
• Active Area: 708.48 x 398.52 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP Rating: Front IP65
• USB Port: 1 x USB (for touch)
• Video: 1 x DP 1.2 (Default); 1 x HDMI 1.4 (Optional); 1 x HDMI 2.0 (Optional)
• Audio: 2 x Speaker
• Dimensions: 799 x 478 x 63.7 mm
• Weight: 18.5 kg
• Mounting: VESA Mount
• Enclosure: Plastic
• Cooling System: Fanless design
• Accessories included: DP cable; 2 x HDMI cables; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws
• Optional accessory: Remote controller (varies)
• Power rating: 12V DC in; 24V DC in (optional)
• Buttons / Controls: 5 Keys: -, +, Power, Esc, Enter
