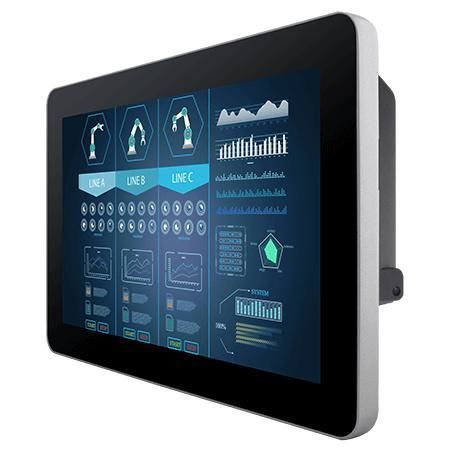

LCD monitor W10L100-PCH2

multitouch screenprojected capacitive touchscreenindustrial

Overview
Winmate W10L100-PCH2 is a 10.1-inch Multi-Touch Chassis Display designed for industrial visualization, control rooms and equipment monitoring. It integrates a projected capacitive touch panel, front IP65 protection and multiple video input options to support embedded and mission‑critical applications.

Key features

• 10.1” 1280 x 800 resolution
• Projected Capacitive Multi‑Touch (P‑Cap)
• Front IP65 water and dust protection
• VGA input (default); HDMI and DVI optional
• 1 x USB for touch
• Aluminum chassis and fanless design

Product highlights & benefits
The display is engineered for continuous operation with low power consumption and effective heat dissipation. Universal VESA mounting supports wall, desk or panel installations, while the fanless aluminum enclosure reduces ingress and maintenance needs. A range of customization options (panel brightness, glass treatment, I/O configuration, power plug) enables integration into varied industrial systems.

Certifications

• CE
• FCC

Display & Touch
10.1‑inch LCD, 1280 x 800 resolution, projected capacitive multi‑touch (default). Panel brightness typically 350 nits, contrast ratio 800:1, 16.7M colors, viewing angles 85/85/85/85. Active area: 216.96 x 135.6 mm. Anti‑glare coating available as option.

Environment
Operating humidity: 10% to 90% RH (non‑condensing). Operating temperature: 0°C to 50°C. Storage temperature: -10°C to 60°C.

I/O & Connectivity
USB: 1 x USB for touch. Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional). Audio: 1 x speaker (optional).

Mechanical
Dimensions: 264.57 x 173.29 x 35.70 mm. Weight: 1.1 kg. Mounting: VESA. Enclosure: Aluminum. Cooling: Fanless design.

Power
Power rating: 12V DC in (standard); 24V DC in (optional).

Control
Front keys: 5 keys: -, +, Power, Esc, Enter.

Display ports and customization
Offers customization for product size, customer logo, LCD panel brightness, glass surface treatment, display ports and regional power plug styles to suit OEM and system integrator requirements.

Applications
Suitable for industrial visualization, control rooms, equipment monitoring, interactive kiosks, retail POS, healthcare information displays, corporate presentation panels and other deployments requiring IP65 front protection and multi‑touch interaction.

Technical specifications

• Model: W10L100-PCH2
• Brand: Winmate
• Size: 10.1 inches
• Resolution: 1280 x 800
• Touch: Projected Capacitive Multi‑Touch (P‑Cap); Anti‑glare optional
• Panel Brightness: 350 nits
• Contrast Ratio: 800:1
• View Angles: 85/85/85/85
• Display Color: 16.7M
• Active Area: 216.96 x 135.6 mm
• Front Protection: IP65
• USB: 1 x USB for touch
• Video Inputs: 1 x VGA (default); HDMI and DVI optional
• Audio: 1 x Speaker (optional)
• Dimensions: 264.57 x 173.29 x 35.70 mm
• Weight: 1.1 kg
• Mounting: VESA
• Enclosure: Aluminum
• Cooling: Fanless
• Operating Temp: 0°C to 50°C
• Storage Temp: -10°C to 60°C
• Operating Humidity: 10% to 90% RH (non‑condensing)
• Power: 12V DC in (standard); 24V DC in (optional)
• Buttons: 5 keys (-, +, Power, Esc, Enter)
• Certifications: CE, FCC
