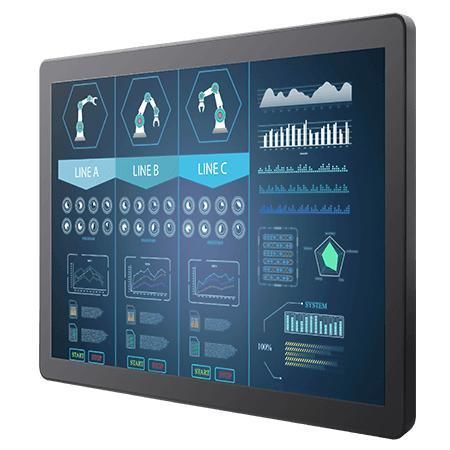

Multitouch screen monitor R19L100-GCM1

PCAP capacitive touch screenfor HMI interface19"

Overview
Winmate R19L100-GCM1 is a 19-inch front IP65 projected capacitive (PCAP) multi-touch display engineered for industrial visualization, control rooms and equipment monitoring. It delivers front-side IP65 protection, fanless operation and MIL-STD-810G compliant shock and vibration resistance for reliable integration in harsh or mission-critical environments.

Key features

• 19" 1280 x 1024 front IP65 PCAP display
• VGA input (default); HDMI and DVI optional
• Projected capacitive multi-touch (USB interface)
• Front IP65 protection against water and dust; waterproof M12 connectors

Design highlights

• Edge-to-edge flat aluminum front for easy cleaning and hygienic operation
• Fanless cooling to prevent dust circulation and extend service life in dusty environments
• Aluminum die-cast housing with optical bonding and anti-moisture treatment
• Rugged I/O with screw-on caps and waterproof connectors for industrial use
• Shock and vibration resistance per MIL-STD-810G for harsh-environment durability

Applications

• Industrial HMI and visualization panels
• Control room displays and equipment monitoring
• OEM integration where IP65 front protection and touch are required

Specifications

• Model: R19L100-GCM1
• Size: 19.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1280 x 1024
• Panel Brightness: 250 nits
• Contrast Ratio: 1000:1
• View Angles: 85, 85, 80, 80
• Display Color: 16.7M Colors
• Active Area: 376.32 x 301.06 mm
• Operating Humidity: 10% to 90% (Non-Condensing)
• Operating Temperature: 0 ~ 50°C
• Storage Temperature: -20 ~ 60°C
• Shock: MIL-STD-810G Method 516.6
• Vibration: MIL-STD-810G Method 514.6
• IP rating: Front IP65
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Dimension: 445 x 370 x 51 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Plastic bezel & metal back cover
• Cooling System: Fanless design
• Included accessories: VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: Remote controller (varies by product)
• Power rating: 12V DC in; 24V DC in (optional)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
