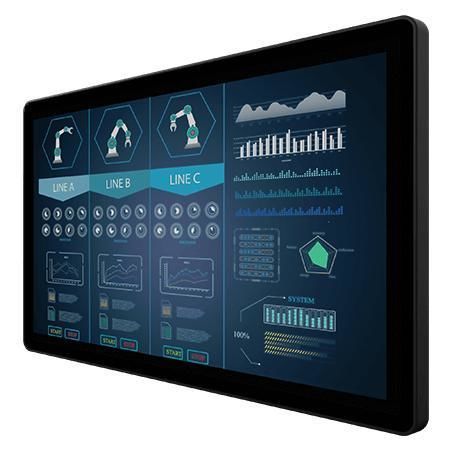

LCD monitor W22L100-PTA3

multitouch screenprojected capacitive touchscreenfor displays

Overview
Winmate W22L100-PTA3 is a 21.5 in multi-touch chassis display designed for industrial visualization, control rooms and equipment monitoring. It is intended for industrial buyers, OEMs and system integrators requiring long lifecycle availability, straightforward integration and reliable field operation.

Key Features

• 21.5 in 1920 x 1080 (Full HD) resolution
• Projected capacitive multi-touch (P‑CAP)
• VGA input (default); HDMI / DVI options
• Front IP65 rating
• Industrial chassis with VESA mounting

Product highlights

• Low power consumption and effective heat dissipation for continuous use in production environments
• Universal VESA mounting for wall or desk installation
• Reliable operation in industrial environments with fanless design and rugged enclosure
• High image quality with 16.7M colors and professional assembly
• Customization options: size, logo, LCD brightness, glass cover treatment and display ports

Certifications

• CE
• FCC

Specifications

• Size: 21.5 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89 / 89 / 89 / 89
• Display Color: 16.7M colors
• Active Area: 476.64 x 268.11 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP Rating: Front IP65
• Certification: CE, FCC
• USB Port: 1 x USB for touch screen
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: 2 x Speaker (optional)
• Dimension: 530 x 322 x 56 mm
• Mounting: VESA mount
• Enclosure: Plastic
• Cooling System: Fanless design
• Accessories (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (optional, varies by product)
• Power Rating: 12V DC in; 24V DC in (optional)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
