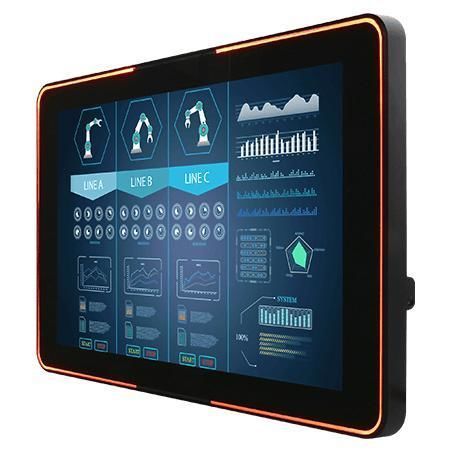

Multitouch screen monitor W10L100-PCH2LB

PCAP capacitive touch screenindustrial10.1"

Product
Winmate W10L100-PCH2LB — 10.1-inch multi-touch chassis display for industrial visualization, control rooms and room information systems

Overview
The W10L100-PCH2LB is a 10.1-inch chassis-mounted display featuring a 1280 x 800 panel and projected capacitive multi-touch (PCAP). It provides a front IP65 rating, an all-around RGB LED status light bar controllable via RS-232, USB touch interface and multiple video input options for flexible system integration.

Key Features

• 10.1-inch 1280 x 800 resolution with Projected Capacitive Multi-Touch (PCAP)
• VGA input (standard) with HDMI and DVI available as options
• All-around RGB LED status light bar with RS-232 control
• 1 x USB port for touch interface
• Front panel protection IP65 (waterproof and dustproof)
• VESA mounting for wall or desk installation; fanless aluminum enclosure

Certifications

• CE
• FCC

Highlights & Use Cases
Designed for continuous operation in industrial or embedded environments, the display supports low power consumption and effective heat dissipation. Typical applications include room booking panels, access control terminals, equipment monitoring and OEM integrations where a reliable, mission-capable display is required. Configurable options include panel brightness, anti-glare glass and optional audio or remote control accessories.

Technical specifications

• Model: W10L100-PCH2LB
• Brand: Winmate
• Display size: 10.1 inches
• Touch / Glass: Projected Capacitive Multi-Touch (PCAP) default; Anti-glare coating optional
• Resolution: 1280 x 800
• Panel brightness: 350 nits
• Contrast ratio: 800:1
• Viewing angles: 85/85/85/85
• Display colors: 16.7M
• Active area: 216.96 x 135.6 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• USB: 1 x USB for touch
• Video inputs: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: 1 x speaker (optional)
• Indicator: RGB LED status light bar (RS-232 control)
• Dimensions: 264.57 x 173.29 x 35.70 mm
• Weight: 1.1 kg
• Mounting: VESA mount
• Enclosure: Aluminum, fanless design
• Power: 12V DC in (standard); 24V DC in optional
• Control: 5 keys: -, +, Power, Esc, Enter
• Accessories included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
