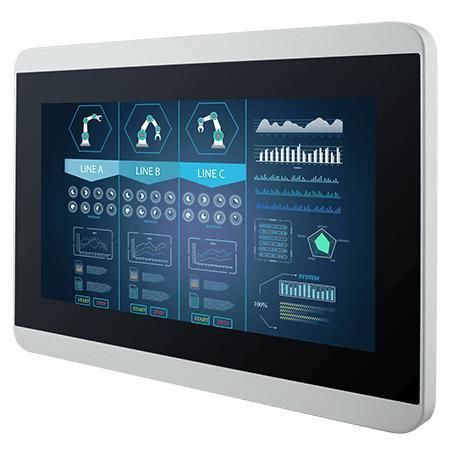

Multitouch screen monitor W07L100-PCT1

touchPCAP capacitive touch screenindustrial

Overview
The W07L100-PCT1 is a 7-inch multi-touch chassis display for industrial visualization, control rooms and equipment monitoring. It pairs a 1024 x 600 panel with projected capacitive (P-Cap) multi-touch and a front panel rated IP65 for water and dust protection.

Key features

• 7.0" 1024 x 600 resolution
• Projected Capacitive (P-Cap) multi-touch
• Front IP65 water and dust protection
• VGA input (default); HDMI and DVI optional
• USB port for touch input
• Metal enclosure with VESA mounting
• Fanless design; 320 nits panel brightness

Certifications

• CE
• FCC

Applications
Suitable for HMI, machine control, embedded systems, OEM integration, control room displays and industrial equipment monitoring. Supports panel, wall and desk mounting for system integration.

Technical specifications

• Model: W07L100-PCT1
• Size: 7.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (P-Cap)
• Resolution: 1024 x 600
• Panel Brightness: 320 nits
• Contrast Ratio: 1000:1
• View Angles: 75, 75, 75, 70 (degrees)
• Display Color: 16.7M Colors
• Active Area: 153.6 x 90 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• USB Port: 1 x USB for touch
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: 1 x Speaker (optional)
• Dimensions: 189.4 x 145.4 x 39.8 mm
• Weight: 0.68 kg
• Mounting: VESA mount
• Enclosure: Metal
• Cooling System: Fanless design
• Power Rating: 12V DC in
• Control / Buttons: 5 keys ( -, +, Power, Esc, Enter )
• Front Protection Rating: IP65 (front)

Accessories and options

• Standard accessories: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, user manual, VESA screws (may vary)
• Optional accessories: remote controller, alternative panel brightness or glass treatments, custom display ports and enclosure finishes
